USA EU AU Stock No Tax No Duty 700W Hybrid kit 400W Wind Turbine Generator 300W Monocrystalline Solar Panel 24V System

List price: US $1,030.39
Price: US $721.27
You save:US $309.12 (30%)
Ships From: China United States United Kingdom Germany Australia Indonesia

Product Description



     USA EU AU Stock No Tax No Duty 700W Hybrid kit 400W Wind Turbine Generator 300W Monocrystalline Solar Panel 24V System



aeProduct.getSubject()

                                             160W monocrystalline solar panel

  1. Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system.

  2. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.

  3. By-Pass Diode minimized the impact of shade.

  4. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).

  5. Resistance to Salt Corrosion and Humidity.

  6. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand

      high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced

      Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)

                                          Wind turbine

  1. High performance Nylon fibre blades by precision molding injection

  2. Low start-up/cut-in wind speed by unique electro-magnet design

  3. Protect from over-speed by blade aerodynamic elasticity

  4. High efficient and compact alternator With high performance NdFeB permanent magnet

  5. With small moment generator of 0.08N.M for low start wind speed

  6. Aluminum housing design for good heat sink ,light weight and tough environment

Item display

 M160

wind turbine (2)

wind turbine (1) 12v24v



aeProduct.getSubject()





 Wind turbine

Rated Power 400w
Nominal Voltage DC12-24V
Service Voltage DC12-24V
Cut-in Wind Speed 2.5m/s
Rated Wind Speed 10.5m/s
Maximum wind speed 35m/s
Rated Rotate Speed 800r/min
battery capacity 200AH-400AH
Output Voltage(AC) 110-220V
control system Automatic fan dedicated controller
Inverter Pure Sine wave Inverter
Generator style Permanent-magento-phase A.C
Fan blade quantity 3
Wind leaf material Carbon fibre composite
Rotor diameter 1.2M
Tower diameter Suggest more than 80 mm
Altitude of towe 4.5M-10M
Fan in the weight 8KG
Pole diameter out diameter 7.4cm inner diameter 5.3cm
packing specification 687mm/365mm/210mm



 160W monocrystalline solar panel

Rated power 160w
Voc 22.41V
Vop 17.9V
Short circuit current (Isc) 9.87A
Working current (Iop) 8.89A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ °c
Temperate coefficient of Voc – (0.38 +/-0.01 )%/°c
Temperate coefficient of power Voc -0.47%/°c
Temperature range -40°c to +80°c
Frame Heavy duty aluminum
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 665*1450*35mm(26.3*57.3*1.38 in)
Weight 28.7lbs(13KG)
Warranty  25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty



20A 12V/24V Hybrid Controller

Model FWS03/06-12/24
Battery Rated Voltage DC12V/24V
Rated Turbine Power 400W/800W
Brake Voltage 14.5V/29V
Turbine Recovery Voltage 13.2V/26.4V
Rated panel Power 500W/1000W
Largest Discharging Current 20A
Battery Overcharging Protection 16.5V/33V(Turn off Load Output)
Battery Discharging Protection 10.7V/21.4V(Turn off Load Output)
Battery Discharge Recovery Protection 12V/25V(Recover Load Output)
Static Power 15mA
Working Temperature -35~+75℃
Controller Dimension 150*87*28mm(5.9"x3.4"x1.1")
Inbreaking Protection IP67



aeProduct.getSubject()

  1. 1x Wind Turbine Generator

  2. 1x Hybrid turbine controller

  3. 2pcs 160W monocrystalline solar panel

  4. 1 pair MC4 Connector with 12cm wire (which for connect the solar panel and controller)

aeProduct.getSubject()



 (2)

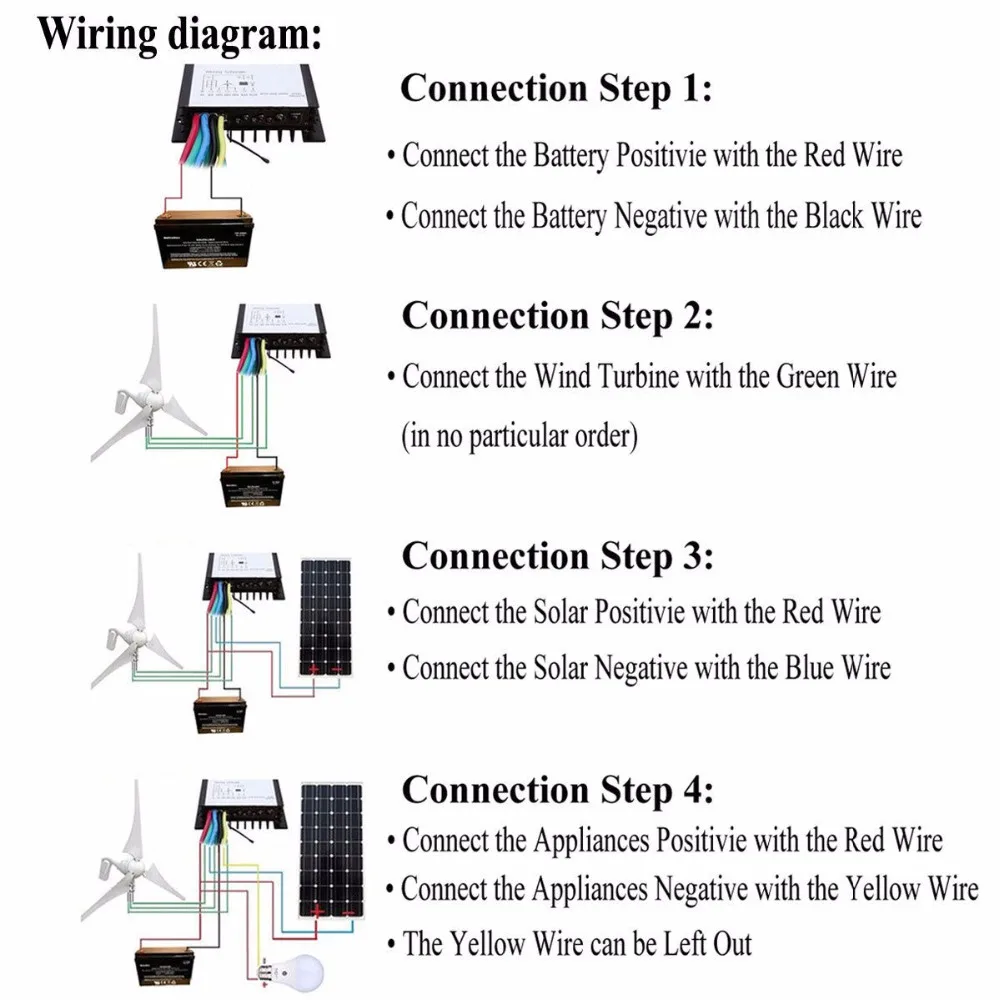

How to connect the controller?
