DC to AC Power Converter LED Display Off Grid 7000W Continuous 14000W Peak Pure Sine Wave Solar Power Inverter
About us:-Our company is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER. Our professional technical department, will support the best technical service and after-sale technical service.
-Our principle is quality first, customer priority, service best, trade honest.
-With the high quality, favorable fame, excellent service, our power inverters are sold all over the world. We have many loyal customer in the Europe, America, Asia, etc.
-All inverters are stricktly inspected before leaving factory, Reliable Company Guarantees that each inverter is in its best operating condition.
About avantage of our inverter:
1.High quality transformer
As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.
Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.
3.True copper inductance
High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.
No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.
With the big radiating flange, better cooling performance, ensure the best inverter working condition.
All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.
7.Earth line connection
Earthe connection for both PCB board and output, more safe for the load and the usage.
The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.

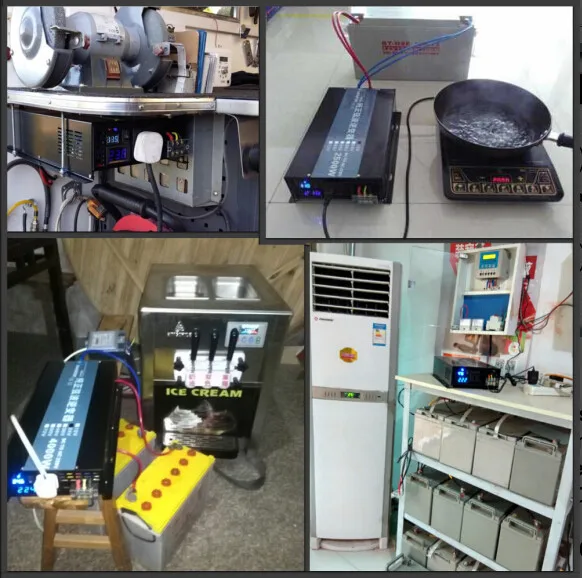

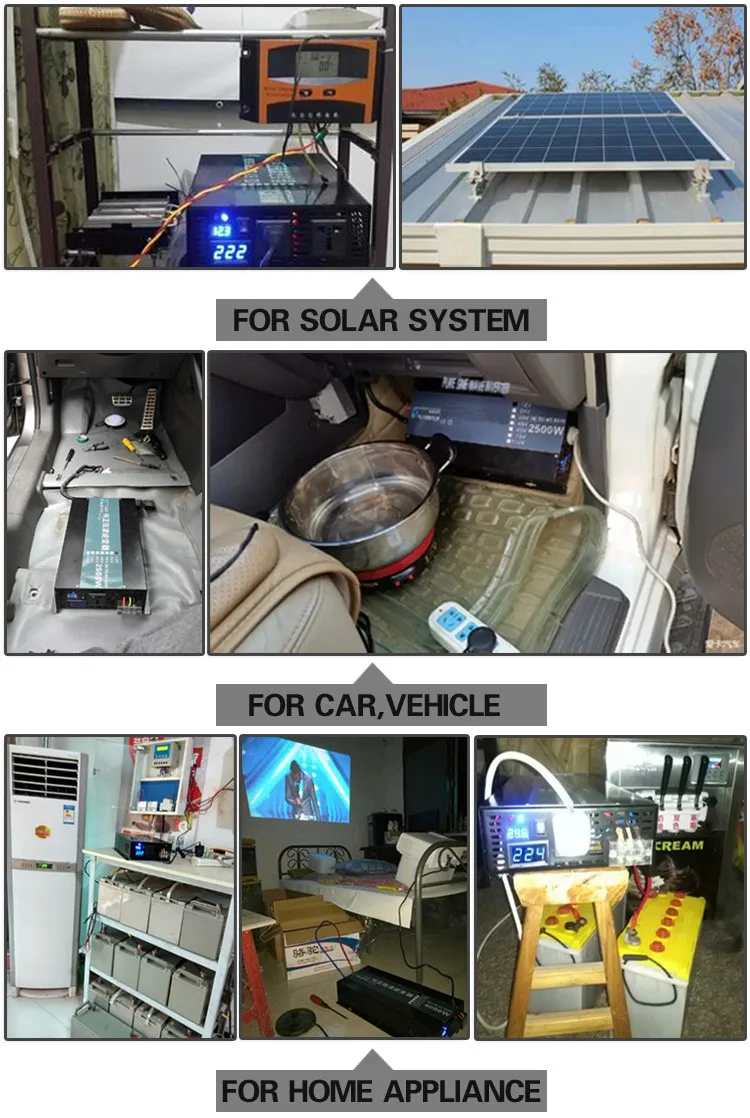

Applications of Our Customers
Product Detail Parameters
|DC Voltage||12V or 24V or 36V or 48V or 72V or 110V|
|Voltage Range||10-15VDC or 21-30VDC or 42-60VDC or 100-120VDC|
|NO Load Current Draw||<1.9A|
|DC Connector||Cables With Clips or Car Adaptor|
|AC Voltage||100/110/120VAC or 220/230/240VAC|
|Waveform||Pure Sine Wave|
|Frequency||50HZ or 60HZ|
|Low Voltage Alarm||10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V|
|Low Voltage Shut Down||9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V|
|Over Load||Shut Off Output|
|Over Voltage Shut Down||15.5V or 30.5V or 61.2V or 120V|
|Over Thermal||Shut Off Output Automatically|
|Working Temperature||Between -10centi and +50centi|
|Working Humidity||20%~90%RH non-condensing|
|Storage Temperature||Between -30centi and +70centi|
|Cooling Ways||Cooling Fan|
|Total Harmonic Distortion THD||<5%|
|Packing Type||Carton Packing|
- Pure Sine Wave, as good as the grid power
- Full Power
- Core Technology, German Design
- Most Advanced Program in Software
- Complete Protection Non Defect Rate,
- Better EMC – Electro Magnetic Compatibility,
- No Noise for TV or Stereo Sound
- SMT- Surface Mounting Technology
- All Big Imported Mosfet,Strong Driving Capacity
- PCB Thickness :2.00m
- LED Display
- Compact Design, Less Weight, Full Power,
- Single Layer Design, Easy to Repair if any.
- Earth Connection for Both Inverter and PCB,
- Low No Load Current Draw
- Durable quality with 10 years usage,
- Alarm and LED Indication Light for error warning. New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.
- Sufficient Heat Radiation
- More Vent Holes on the plates and the bottom for heat radiation
- Popular Metal Black Design
- Big Current Connector,
- All kinds of socket are available
- Strong Wiring Row on AC End,
- Best quality ever in the market
- Factory Price.
(The above photo is 3000W inverter, Only for your reference)
Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm. Inverter comes with an LED light to indicate the problem.
9 Kinds of Protections
1.Short circuit production.
When the load is short circuit, the inverter will stop working.
2. High temperature production.
When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.
3. High voltage protections.
The battery voltage is above the rated voltage of the inverter, the inverter will stop working.
4. Low voltage protections
The battery voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.
5. Surge protection.
It can avoid the DC high voltage surging attack upon the electronic components inside.
6. Overload protection
When the appliances power is higher than the inverters power, the inverter will stop working for self protection.
7. Over current Protection
When the appliances current is bigger than the inverter current, the protection components on the board will be cut automatically for self protection.
When the appliances resistance is bigger than inverters, the fuses on the socket will be automatically cut off for self protection.
9. Reverse protection
It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.
The Resistive Load Applications and The Inductive Load Applications
For resistive load applications:
If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance’s rated power.
For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.
For inductive load applications:
If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.
Durable and safe quality with many years usage, our pure sine wave inverters are approved by EMC testing in Australia and CE certified. 18 months warranty.
For the small capacity, The inverter will be sent by DHL, EMS, Fedex and e-EMS, it will take 3-12 days for shipping.
If you need huge quantity, please contact with me about the transport process.
1. RELIABLE is your trusted partner for long term business.We arethe MANUFACUTER of the solar inverter. We are responsible forthe quality of the inverter. The inverter has 1.5 year guarantee. We provide technical support and service for the inverter the whole life.
All inverters would be double tested before shipment to be guaranteed in brand new condition and work perfectly.
2. Returns for exchange are permitted and must be initiated by the buyer within 4 days of receipt. All return items must be in their original condition. Return shipping and handling charge will be at the buyer’s expense first. Please do contact with us for return address, details and any other issues.
3. We will not be responsible for any delay during delivery including but not limited to the customs package checking, strike, force majeure, etc.
4. We can declare lower value on the invoice for the duties reason, which does not reflect the total price you paid or the market value of the product. It may not apply to countries with different tariff rules. We are not responsible for any custom duty or import tax.
5. In case there is problem with your order, make sure CONTACT US before leaving negative feedback. Leaving negative feedback without communication is a violation of feedback policy.
6. Please leave us message if you have any question, we will reply in 24 hours, thank you.
We accpet the customized made inverter for each customer, please leave me a messages of your inverter specifications:
Leave me all these specifications by sending me a message, so that I can make sure of a fast shipping!
(attention please: only one voltage can be choose! If the input is 48v or 72v, the additional 10% price will be needed, if the input is 110v, the additional 15% price will be needed. If you need remote controller, we need more 15 USD.Please contact with me. I’ll change your price, or you can pay us by paypal.)
3.What’s your frequency? 50HZ or 60HZ?
4.What’s your socket type? please look at the picture I attached and make a choice.
