MAYLAR@ 96VDC ,8000W Off-grid Pure Sine Wave Solar Inverter or wind inverter For Solar/Wind Energy System ,Two year Warranty

List price: US $1,056.20
Price: US $929.46
You save:US $126.74 (12%)

Product Description



Product Description

Off-Grid 8000w Pure Sine Wave Inverter for Solar or Wind System, Single Phase, Peak Power  16000w, 96VDC, 100VDC/110V/120VDC or 220VDC/230VDC/240VDC,50Hz/60Hz

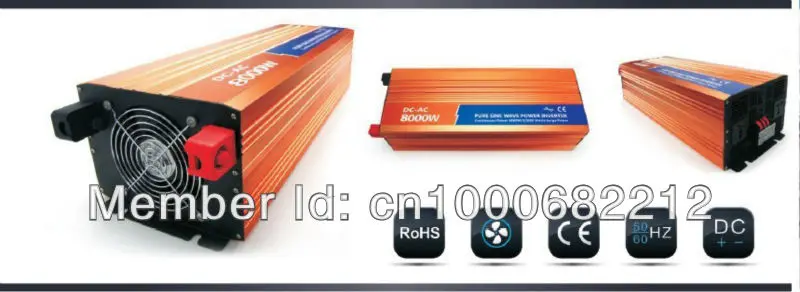

1. Product show :aeProduct.getSubject()



Features:

  1. Use advanced double CPU single chip computer intelligent controle technology. It is a higly reliable inverter with very low failure rate.
  2. Pure sine wave output, with strong overload capability and wide application.
  3. has complete protection functions(over-loaded protection, interior over heated protection, output short circuit protection, input over voltage protection ect). It can increase the reliability of the product.
  4. Small size and light weight. The interior part adopts CPU centralized controlling, surface mounting technology, which make the size small and weight light.
  5. Cooling fan intelligent control. Adopts CPU controlled cooling fan, which expand the fan’s use durability, save power energy and improve the efficiency
  6. Working noise is low and the efficiency is high.

Application:

  1. Vehicle and vessel carried equpments series: Military vehicle, ambulance vehicle, vessel, traffic lights ect.
  2. Industrial equipments series: solar power, wind power generation, gas discharge lamp ect.
  3. Office: computer, printer, duplicating machine, scanner, digital camera ect.
  4. Kitchen Appliance: microwave oven, electromagnetic oven, refrigerator,ect.
  5. Home electric appliance: Electric fan, vacuum cleaner, air conditioner, lights ect.
  6. Power tool series: electric saw, drilling machine,punching machines,air compressor ect.

Protection Features:

Overload shutdown

Over temperature shutdown

Low voltage alarm

Low voltage shutdown

High battery voltage shutdown

Short circuit protection

Polarity reverse connection protection



2. Technical parameters:

odel

PSW8000W

Output power

8000W

Peak power

16000W

Input voltage

96V

Output voltage

100V,110V,120V/220V,230V,240V

No-load current (<)

0.5A

Output frequency

50HZ±0.5HZ or 60HZ±0.5HZ

Output waveform

Pure sine wave

Waveform distortion

THD<3%(Linear load)

USB

5V 500mA

Output efficiency

A maximum of 94%

Input voltage range

80-120V

Undervoltage alarm

80±2V

Undervoltage protection

83±2V

Overvoltage protection

120±2V

Voltage recovery

96±3V

Overvoltage recovery

115±2V





Protection function

Undervoltage / overvoltage

LED red light, alarm, automatic recovery

Overload

LED red light, alarm, lock

Over-temperature

LED red light, alarm, automatic recovery

Short-circuit

LED red light, alarm, automatic recovery

Input reverse

Diodes or MOS transistor

Operating ambient temperature

-10°C- +50°C

Storage ambient temperature

-30°C- +70°C

Product Size (mm) /Package Size (mm)

662*199*145/740*300*235

N.W/G.W(KG)

14/17.5

QTY / CTN

1 Pieces

Carton Size(mm)/ Carton Weight(KG) 740*300*235 /17.5

Warranty

Two Years

Start

Front and back double soft-start

Cooling

Temperature Controlled Fan

Certifications

CE, RoHS



3. Workshop details

Inspection of plug-in units:aeProduct.getSubject()

aeProduct.getSubject()





Debugging and Assembling:

aeProduct.getSubject()

aeProduct.getSubject()





Aging test:



aeProduct.getSubject()





Waveform test:

aeProduct.getSubject()



Finished products:

aeProduct.getSubject()aeProduct.getSubject()
