MAYLAR@ 12V/24V400W High Efficiency Vertical Wind Turbine Generator Low noise Low Start Wind Speed ,Dantian 12 leaf outer 3 leaf

List price: US $524.50
Price: US $377.64
You save:US $146.86 (28%)

Product Description

1111111DECEN07



10 Years Life Time And 1 Year Warranty All Aluminum Casing,



Optimal Design, Good Balance, Power Output Steady;Low Noise ,High



Efficiency 400W Vertical Wind Turbine









PRODOCTS OVERVIEW
aeProduct.getSubject()




 There are JDX-S, JDX-H two kinds of styles vertical axis wind-driven turbine in our company, the wind turbine disc use no iron core generator as the output power hub, small volume, light weight, high efficiency. Generator resistant to 160 degrees Celsius temperature and do not affect its power efficiency, long service life. As the first choice of scenery complementary lamp products for urban construction increase a beautiful scenery line.

JDX-S200W / 300 W / 400 W /600W, JDX-H200W / 300W / 400W /600W wind turbine used in scenery complementary power supply system.Scenery complementary lights is the use of natural wind and solar power , to provide lighting for street lamp, monitoring system and appliances equipment of small household electrical etc. The product is suitable for use in urban and rural road lighting, garden lighting, landscape lighting, street lamp monitoring and other places.



TECHNICAL DATA
aeProduct.getSubject()






serial number

                   item

               Process Specification

                 1

               Rated power

    300W

       400W

       600W

                 2

                 generator

        Disc without iron core generators

                3

               output mode

         three-phase alternating current

                4

           Started wind speed

                             2m/s

                5

            Rated wind speed

      12m/s

       8m/s

         8m/s

                6

           Safe wind speed

                               45m/s

               7

          Fans slice quantity

              inward turning 6 leaves,

              outward turning leaves.

              inward turning 12 leaves,

              outward turning leaves.





Scenery complementary system working principle



Scenery complementary meaning is: the wind generator and solar panels of the power generation after scenery complementarycontroller, both the electric storage to send battery pack for use in load (if the load is communication load , required to use inverter to battery DC to AC inverter for AC load use).

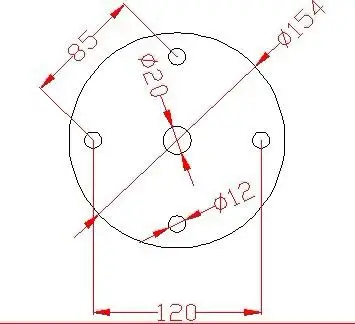

VERTILCAL WIND TURBINE FLANGE CONSTRUCTED BASE SIZE

aeProduct.getSubject()
   aeProduct.getSubject()       Note: unit(mm)


INSTALLATION EXPLOSION FIGURE OF THE WIND GENERATOR





Note

this products packaging into two parts



1; Fan subject

2; Three frame. Installation content is connected three frame and fan subject.


INSTALLATION STEP OF THE WIND GENERATOR


aeProduct.getSubject()


Step

1: Open the package, set up fan subject as shown in the picture 1

2: connecting three frame and the top of fan subject, screw diagonal loaded on location as shown in picture 2 , but do not tighten.

3: connecting three frame and the bottom of fan subject, screw diagonal loaded on location as shown in picture 3, but do not tighten.

4: Tighten the connection screw, installation is complete.
