Hot all in one 8W cob led street lighting 12W solar panel power Saving Road lamp aluminum Outdoor waterproof IP65 path light 1PC

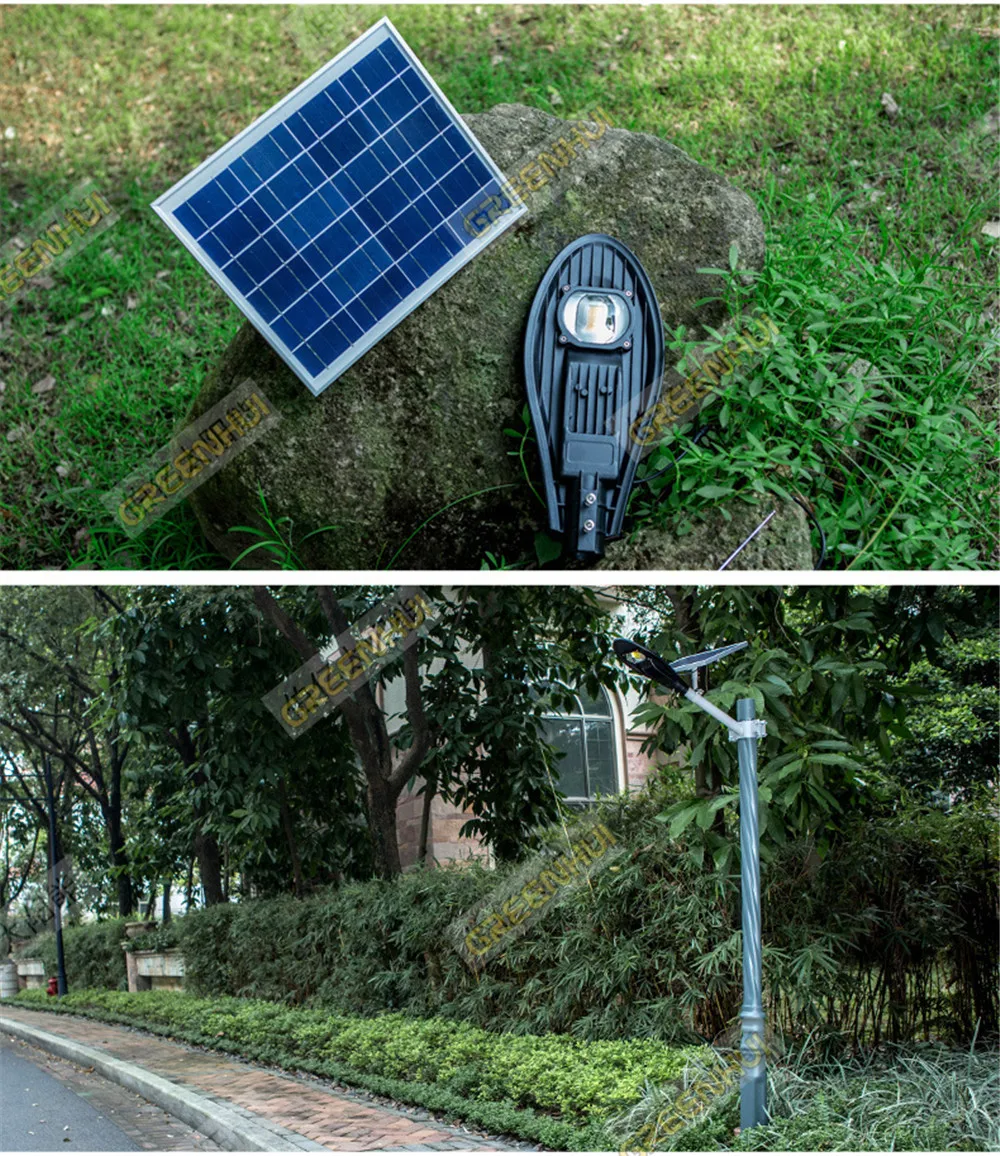

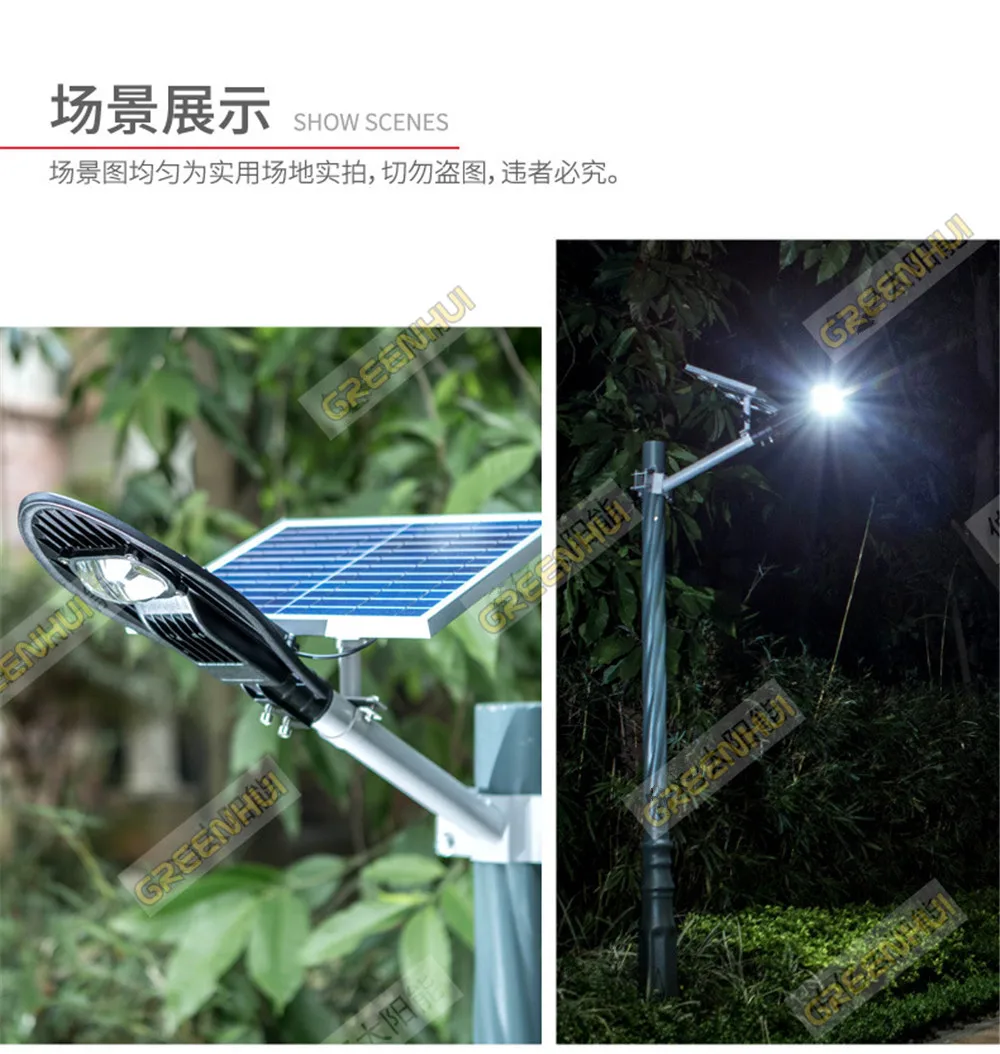

Mainly used in courtyard,residential community,scenic spot and lack-of or no-power area. Easy instalation,energy saving,environmental protection,no electricity fees and long life span.Integrated desigh,modular production.
- Item: SY-31

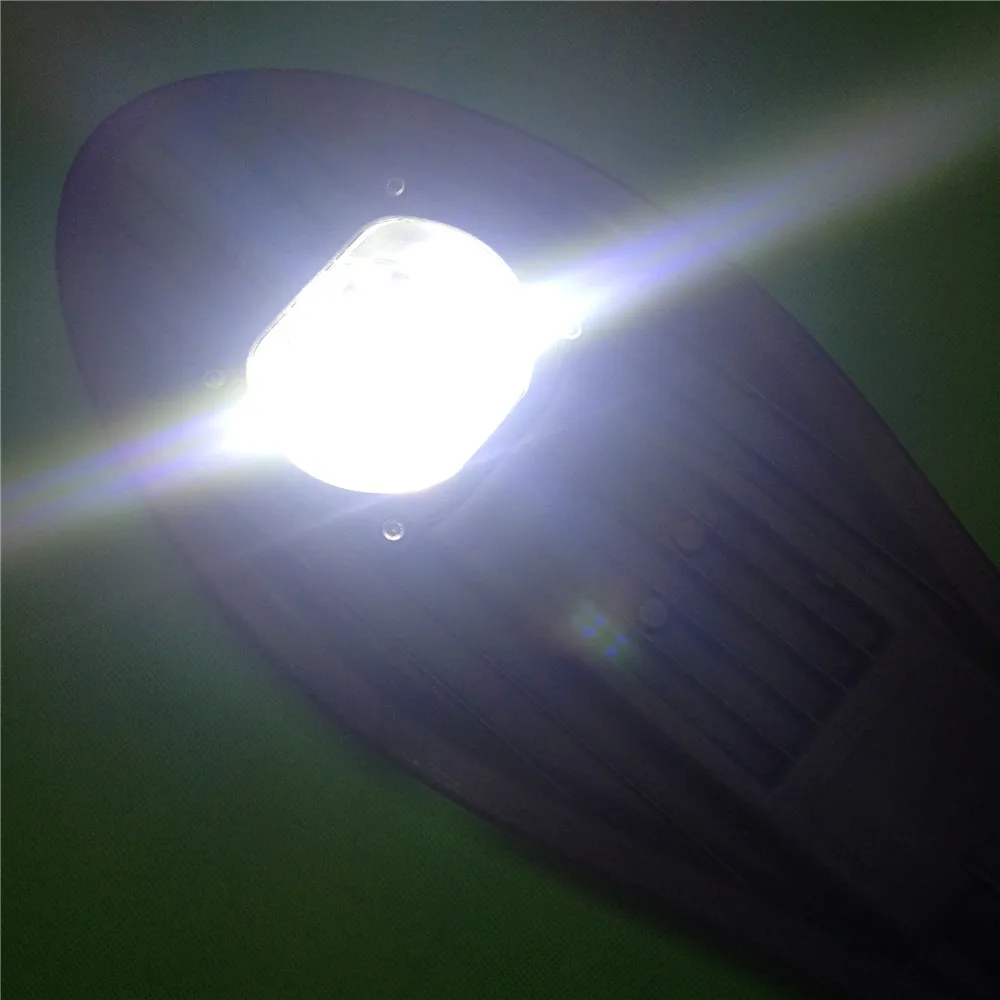

- LED Lamp: 8W COB LED 800Lm,life time:50000hours

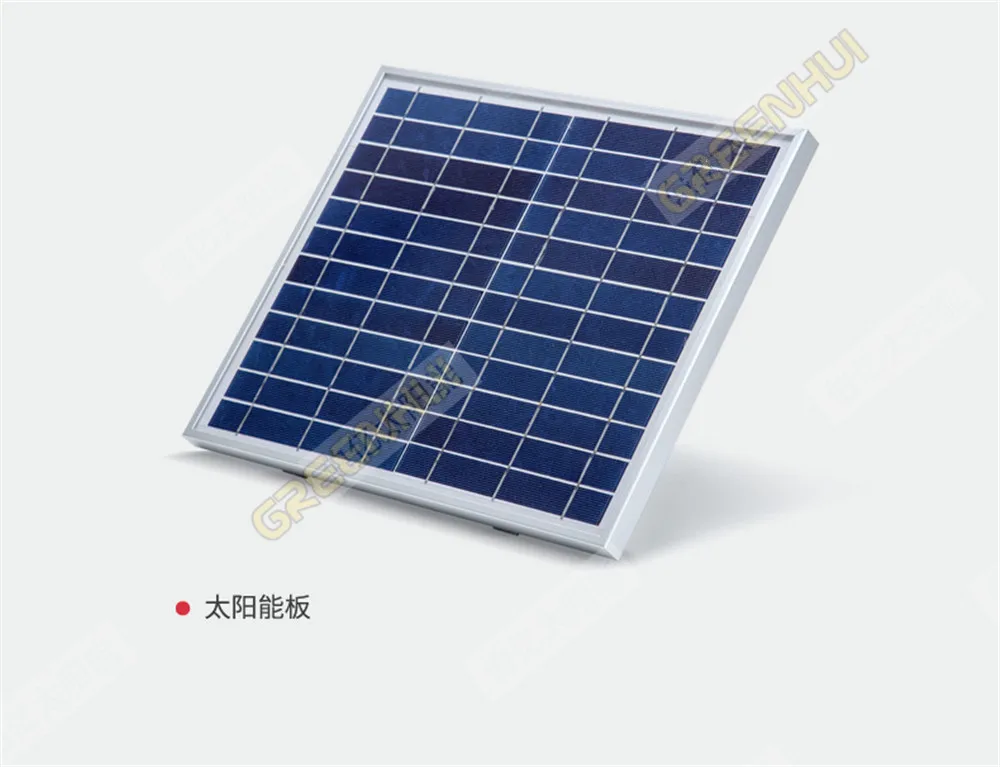

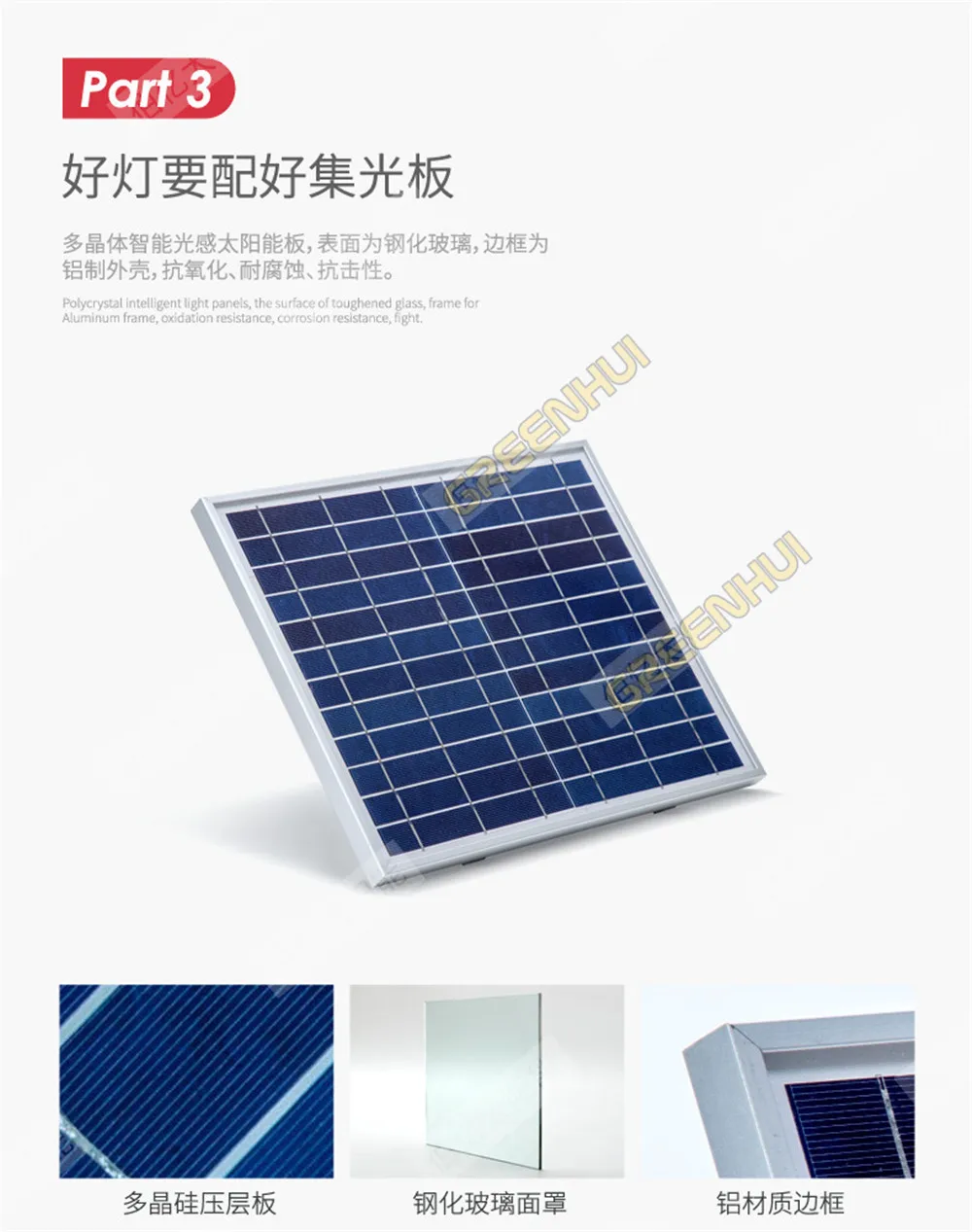

- Solar panel: 16V 12W, polysilicon, life span:10 years
- Battary: 11.1V/4AH, 18650 lithium battery (Include)
- Colour temperature: Cool White
- Work Mode: Light control / Remote control ( When you order, please pay attention to choose )
- Suggest installation height: 3~5 Meters
- Charge time: 6~8 hours by bright sunlight (1000W/m2)
- Discharge time: Whole night lighting,intelligent control 1-3 raining days ( first 5 hours 100% brightness + 50% brightness to dawn )
- Working Temperature: -20°~ +60°
- Material: Aluminium, Iron, glass
- Waterproof: IP65

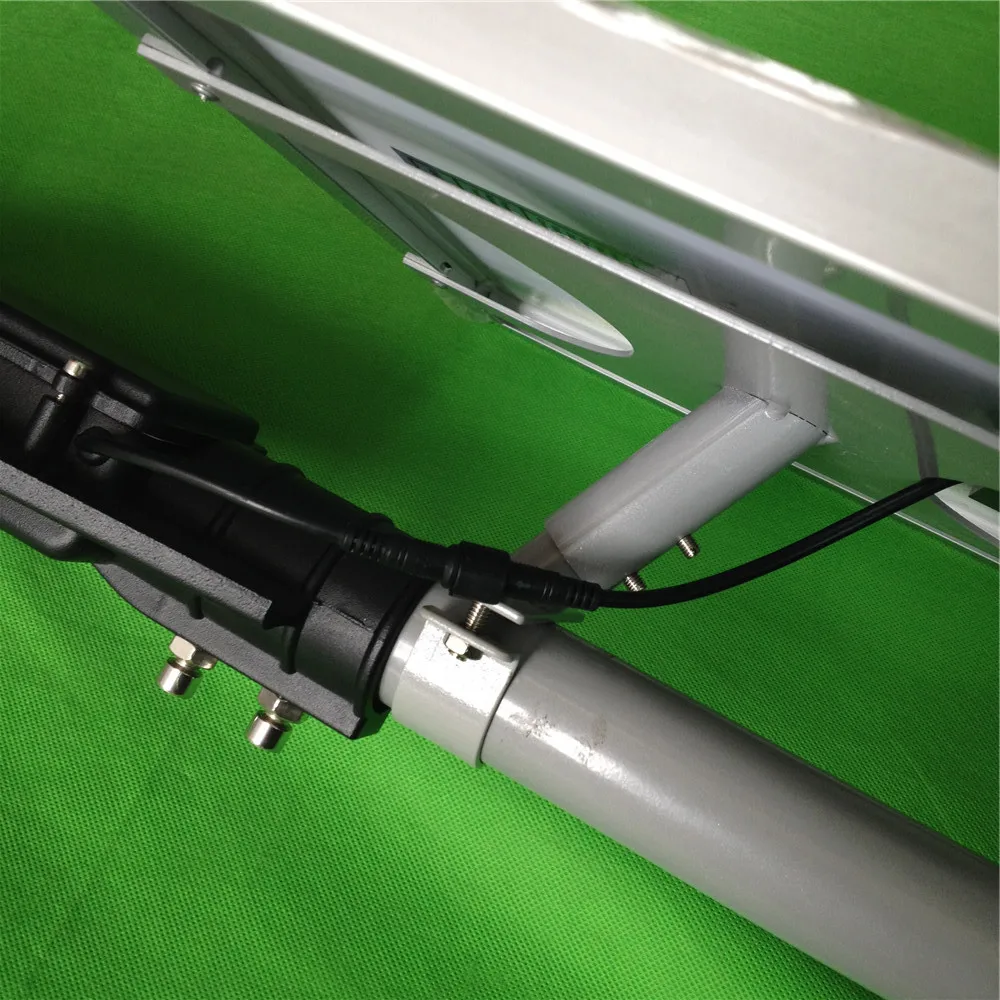

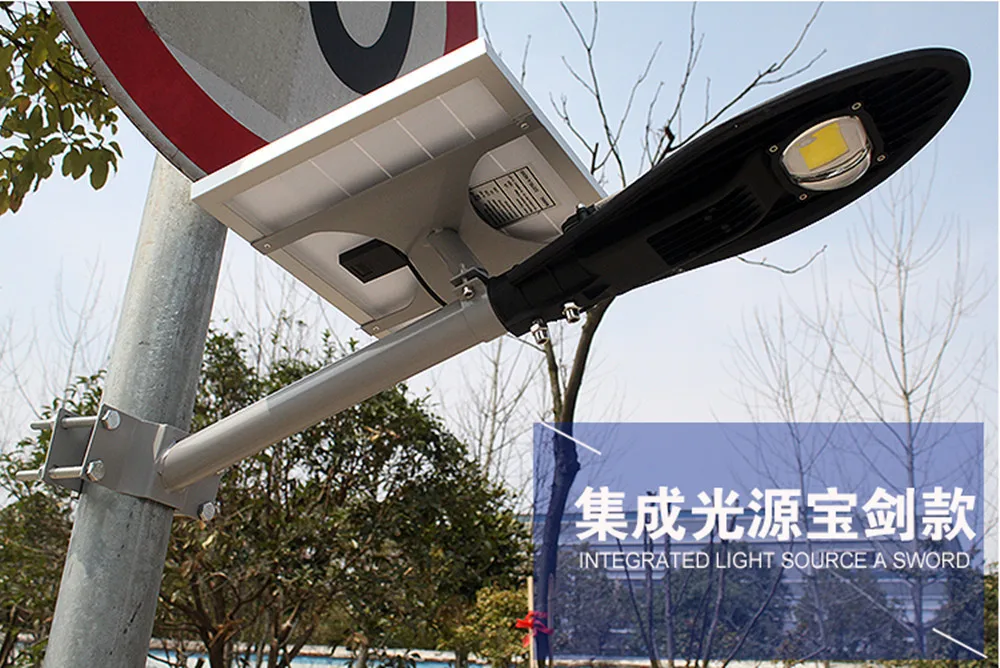

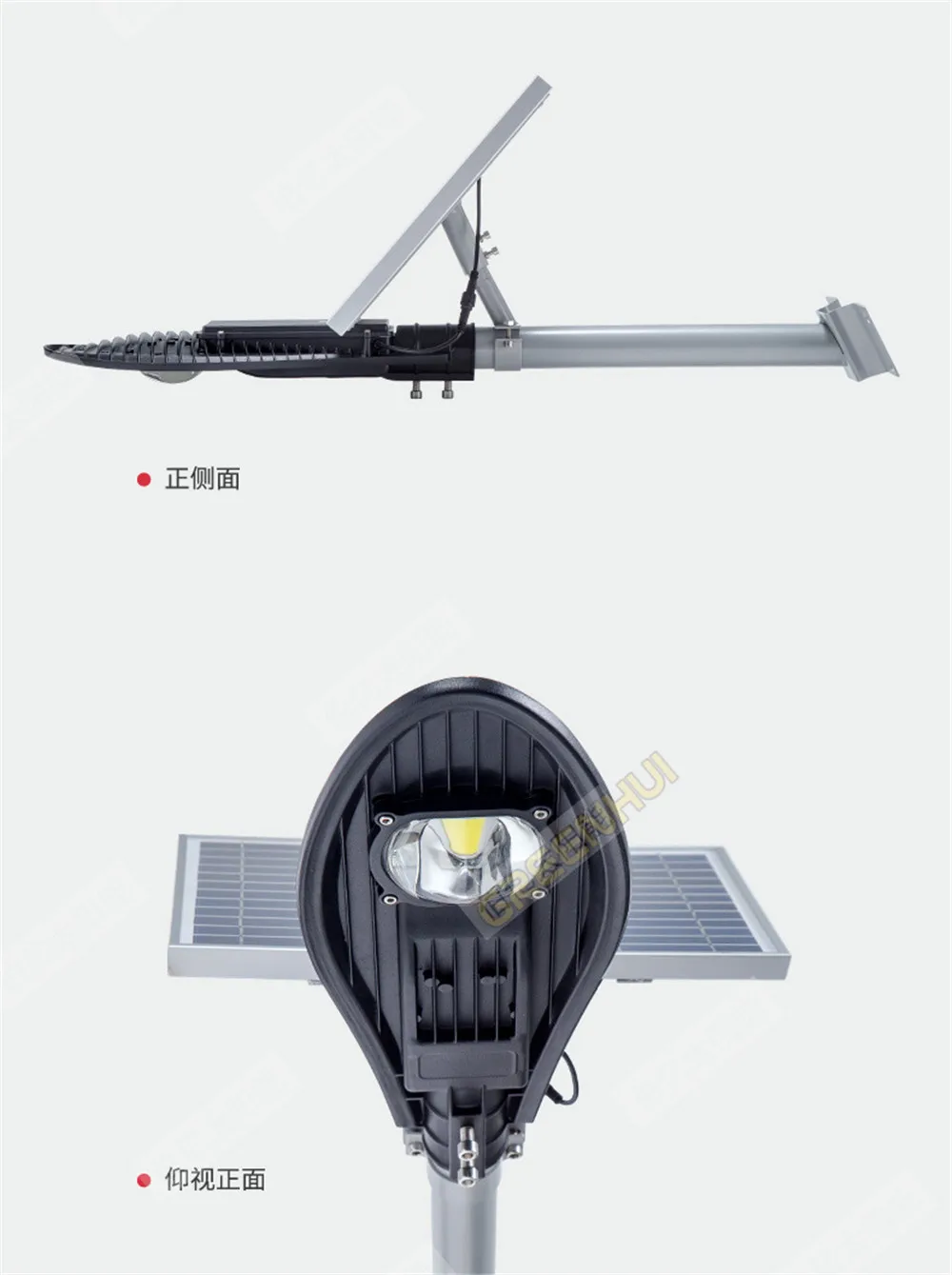

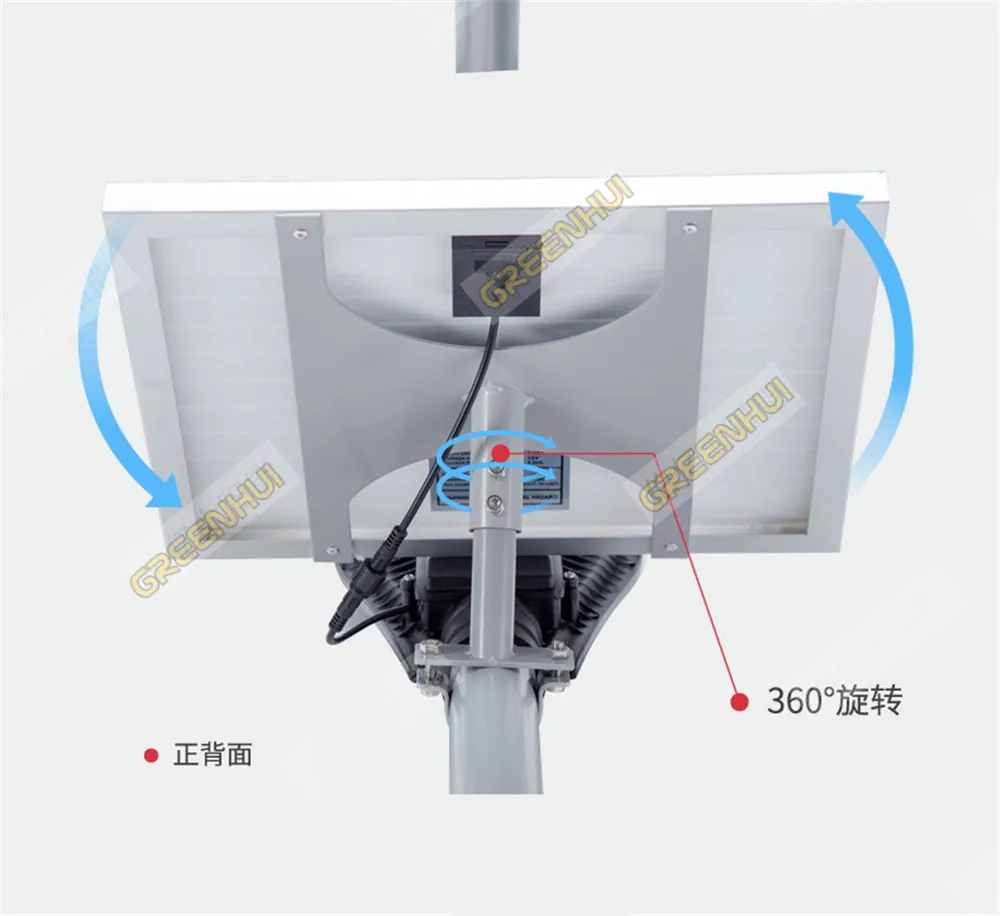

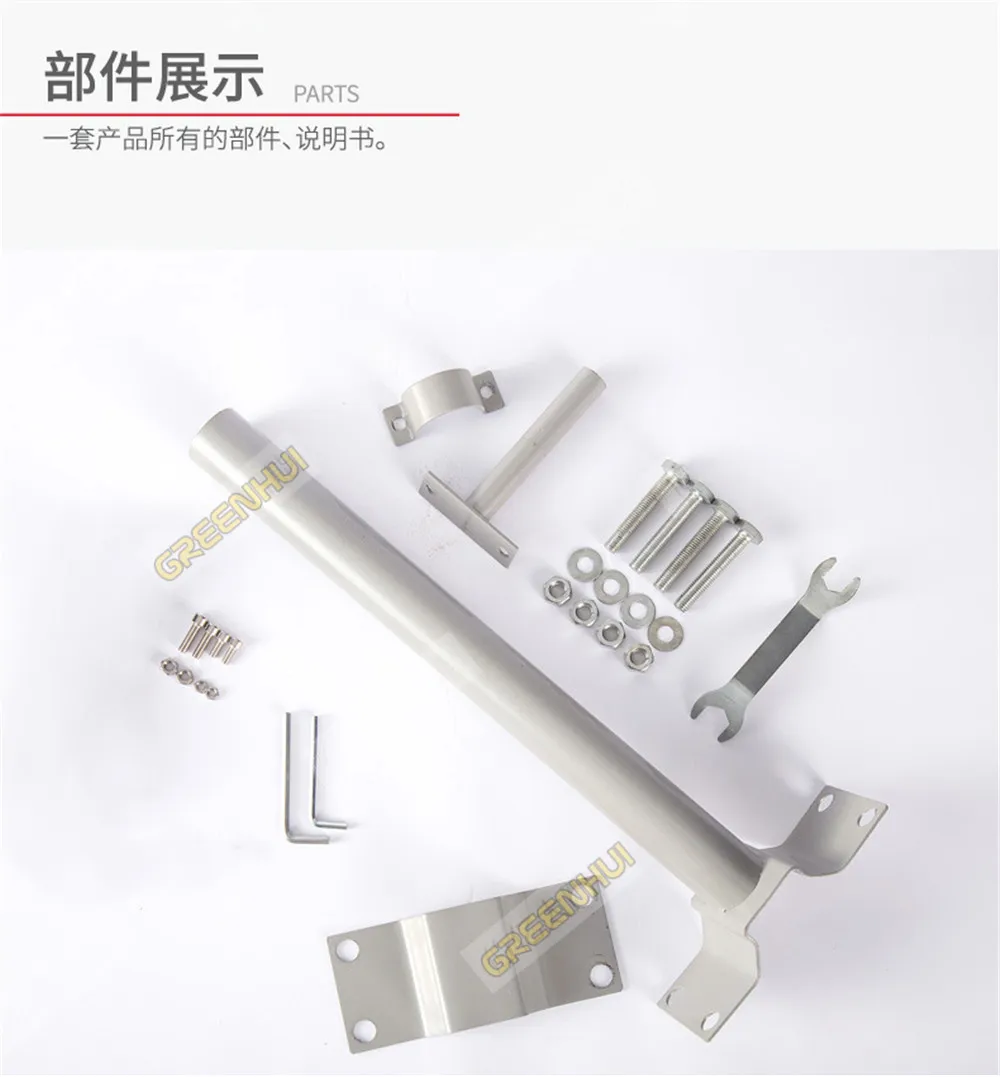

- Installation: 2 kind installation methods: fixed wall or hold pole
1. Light control (Without remote control): daytime charging, lights off, When dark, Automatically turns on, first 5 hours 100% brightness + 50% brightness to dawn.
2. Remote control (With remote control): light control+remote control, during the day or night, can be forced to turn on or turn off the lights, Adjust the brightness, Control distance>30 meters.
Button 1: forced to turn on the light, in the outdoor or indoor environmental conditions can be force to turn on the lights, according to mandatory lights key cannot have automatic light control function, so no use lamp must be turn off the light, otherwise it will the lamp power consumption end.
Button 2: forced to turn off the light, in the outdoor or indoor environmental conditions can be force to turn off the lights, so want to turn on the lights can press button 1 or button 3.
Button 3: automatic optical function keys, press the function key can not forced to switch on the lamp, lamp automatic induction of outdoor light, automatically turn on the lights turn off.
Button 4: stepless dimming function, the finger presses down button not loosen and transferred to their satisfaction with the brightness dimming forced to turn off the lights, and then turn on the light, the lamp has the memory function of luminosity.
Button 5: stepless dimming function, the finger presses down button not loosen and transferred to their satisfaction with the brightness dimming forced to turn off the lights, and then turn on the light, the lamp has the memory function of luminosity.
Note: when using the remote control function, fi "forced to turn on the lights" button 1, lights not optically controlled automatic function, no lights must according to "forced to turn off the light" button 2.
1 * SY-31 all in one solar street light
How to install?
Fix the product with a right angle and make sure no shelter on the surface of solar panel.
How to use?
The product is off before delivery in order to avoid discharging during transportation. You can activate it by using the pin or related button or tearing off the film. This is depend on different item, the activate way may differ.
What to do with the rainy day or Cloudy day?
The outdoor solar light is waterproof. You don’t need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
If you found the light brightness is down or total off, how to handle?
It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight charged, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
Why the charging efficiency is low in winter or cloudy day?
Generally the sunlight standard is 1000kw/m2, in the winter or cloudy day, the sunlight intensity are much lower than standard so the charging efficiency is lower accordingly.
