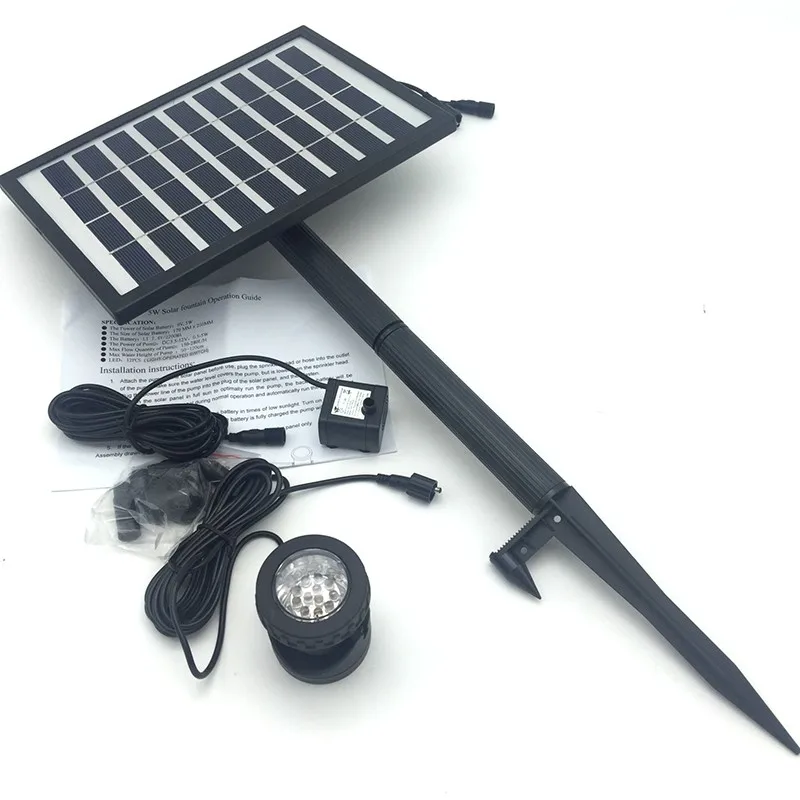

High Quality Solar Panel Battery 9V 5W Solar Water Pump Landscape Fountain with Dive Light
The solar brushless pump low-power high-sensitivity Hall element, with efficient intelligent drive electronics, and the use of hydrodynamic volute design for the impeller chamber to reduce the flow resistance, so that the overall performance than the conventional structure solar pump efficiency by 20%. Also it solves the solar brushless pump hard start, low efficiency, poor stability shortcomings.
The pump can be connected to a variety of different shapes of nozzle, emitting different water types.

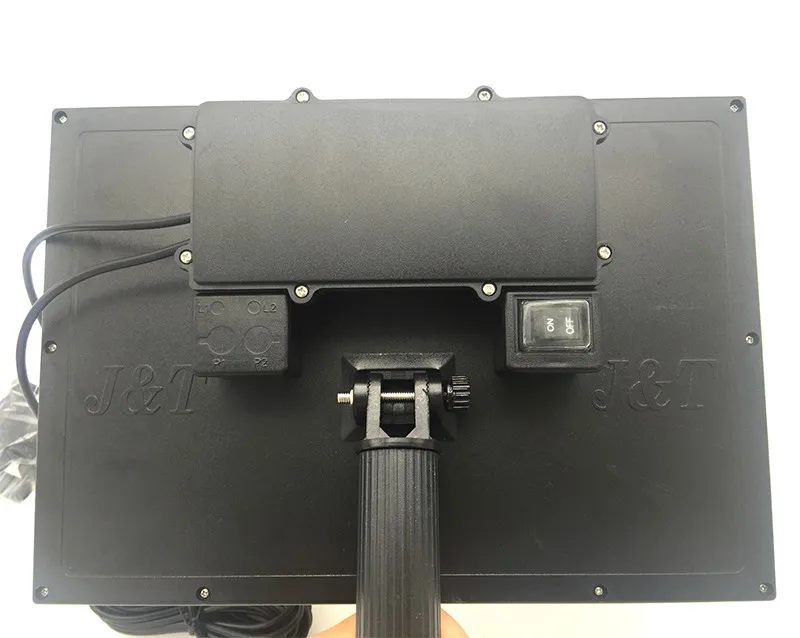

Solar panels Specifications:
1.Rated voltage: 9V
2.Rated power: 5W
3.Material: polycrystalline silicon, tempered glass laminated
4.Battery: LI (lithium battery)
5.Rated voltage: 7.4V
6.Rated current: 2400MA
1.Operating voltage: DC 8V
2.Operating Current: 180MA
3.Maximum lift: 110CM
4.Maximum flow: 220L / H
5.water pump life:> 30,000 hours
6.Pump Noise: <40DB
1.Diameter 5MM super bright LED
2.White lights: 12PCS
Water height: 30–70cm, connect different nozzles, spray height will be different.
When the solar panel receives plenty of sunshine, the pump will start within 1 second.
1) Press the schematic assembled products.
2) solar panels will be placed in the right place, to ensure that the light is not shielded by other objects. When the solar panel receives plenty of light, water pump that is working properly.
3) pumps just into the water, there are air, water may affect the results. After suggestions pump normal water, then connect the nozzle.

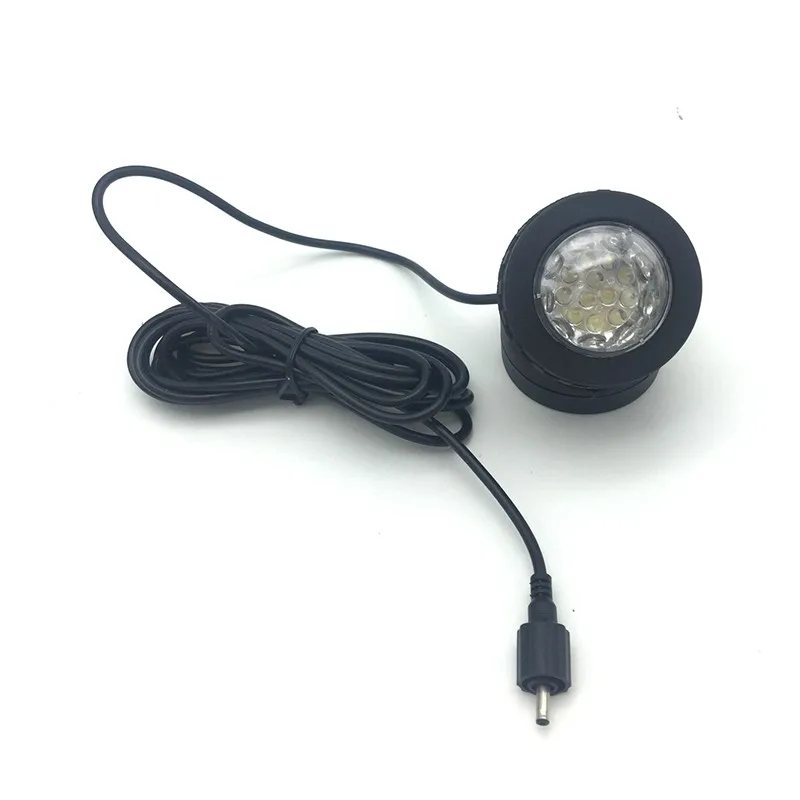

Dive Light’s performance:
Using high brightness, low energy consumption LED lights. Sunny day charge 8 hours, night lighting time more than 20 hours. Product lifetime more than 2 years.
Can effectively prevent dust entering, and can be immersed in water for a long time.
1. A product with a battery function, the height of water depends entirely on the strength of battery power, when the sun is weak, water pumps powered completely from the battery until the battery power depletion, water pumps stop working, when the sun reaches a certain intensity began to charge the battery redundant power supply pump, the pump will be able to start work. under normal conditions, sunny morning around 8:00 pump start work until four in the afternoon or so, when the sun becomes weak, the battery-powered directly to the pump until the battery consumption End of electricity, roughly work to around 8-9 o’clock in the evening. If you want the pump to work at night, during the day charging, unplug the pump to the plug, plug in the evening pumps, pumps can work a little longer.
2. The pump must be completely immersed in water, not long dehydration work. When the pump immediately immersed in water, since the water pump after the air inside, recommendations pump nozzle is inserted in normal water.
3. Keep the water clean, regular cleaning pumps, pump suction to prevent foreign matter is caused by the pump is not working properly.
