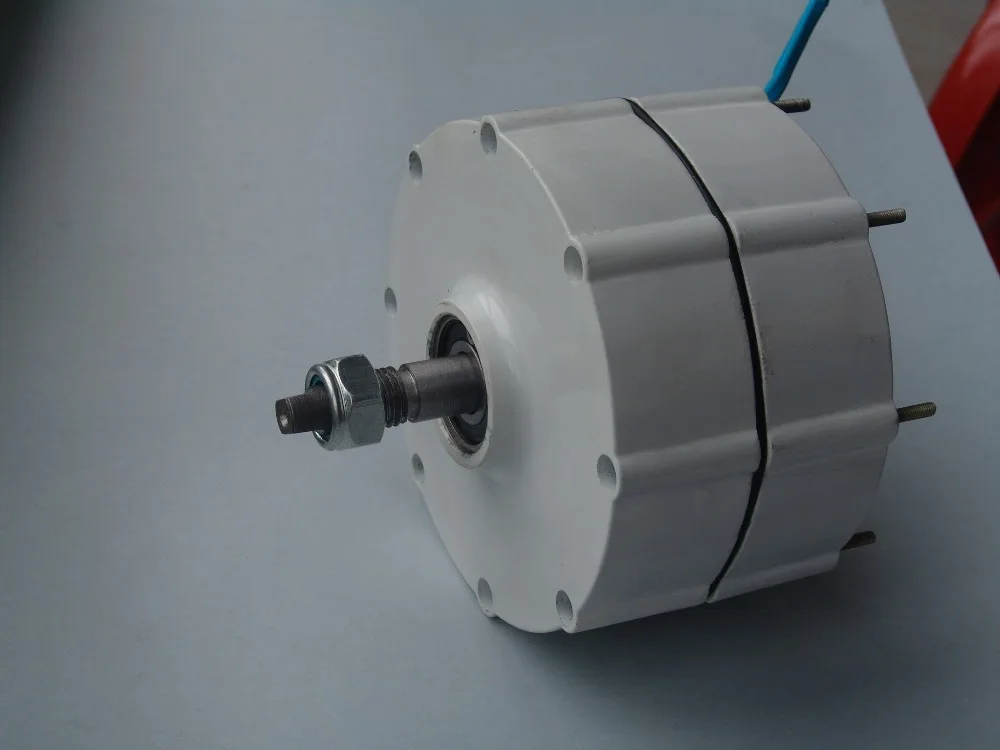

Permanent Magnet Generator AC Alternator for Vertical Wind Turbine Generator 100W-600W
When you make order for this item, please leave the message that you want to buy the AC12V or AC24V, one shaft or two shafts.
AC12V will be sent if there is no notice from you. Thanks.
|Rated Power (w)||100w||200w||300w||400w||500w||600w|
|Max Power (w)||130w||230w||350w||450w||550w||650w|
|Rated Voltage(v)||12/24v||12/24v||12/24v||12/24v 12V/||24v/48v||12V/24v/48v|
|Rated Speed (r/m)||600r/m||700r/m||600r/m||700r/m||650 r/m||650 r/m|
|Net Weight (kg)||2.8kg||3kg||4kg||6.5kg||7kg||7.5kg|
|Gross Weight KGS||3.5KGS||4KGS||5KGS||7.0KGS||7.6KGS||8KGS|
(Generator height*Generator width*Shaft height)
|Rotor||Permanent Magnet Generator AC Alternator|
|Working Temperature||-40°C – 80°C|
Notice:Due to the improvement of technical and performance, the dimension of generator may be a little different.
Production Line of Wind Generator:
1.Depending on our advanced facilities and experienced engineers, we can assure you high quality products with reasonable price.
for more questions, pls leave a message on aliexpress or contact us via Trade manager.
2.Our after sales service also keep tracking it and send message to you when there is any delay in shipping.
3.When you receive the package, please open the package and check all the items are working in good condition before you sign.Don’t sign if the items are broken,and ask the delivery company to make a "damage certificate" Otherwise,we will not provide any warranty and refund.
