|Start-up Wind Speed||2.5m/s(8’/s)|
|Rated Wind Speed||10.5m/S(35’/s)|
|Number of Blades||3|
|Material of Wind Leaf||Carbon Fiber Composite|
|Tower Diameter||>80 mm(3.2")|
|Product Life||15 years|

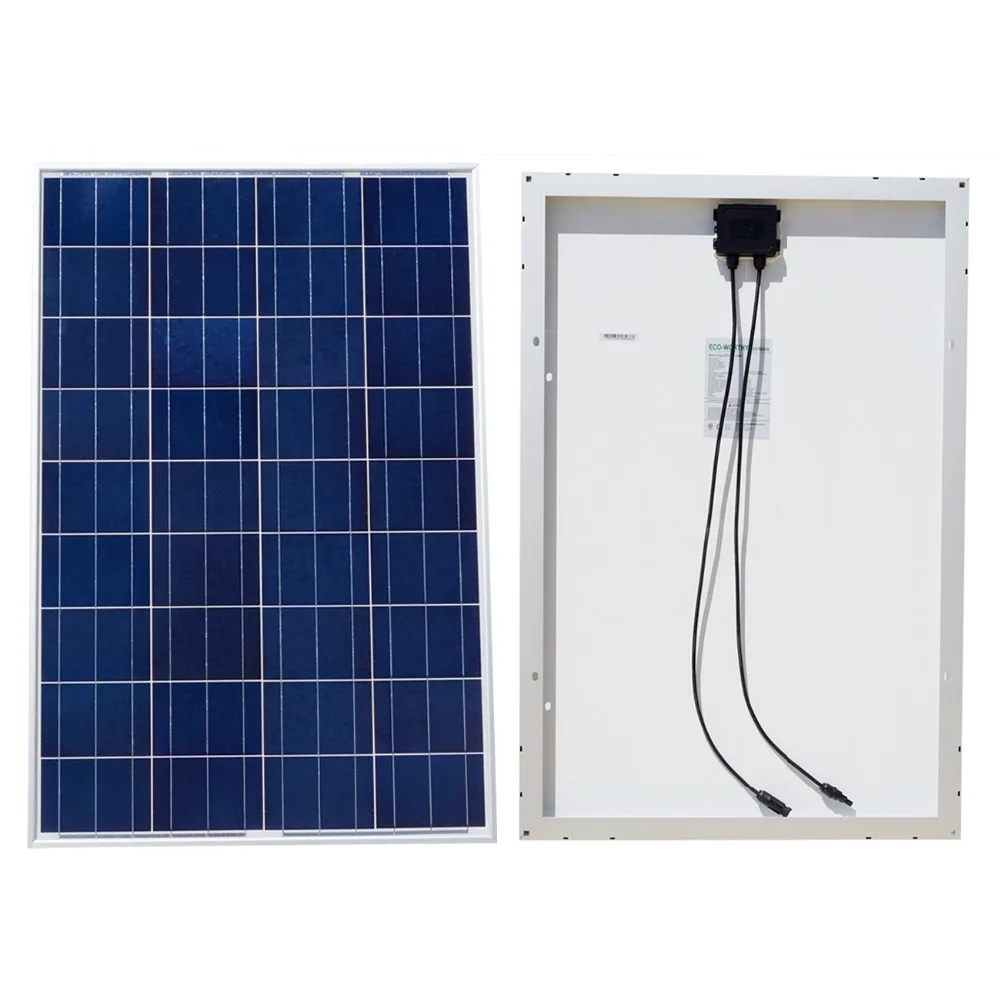

100W Polycrystalline Solar Panel
|Open Circuit Voltage(Voc)||21.6V|
|Short Circuit Current (Isc)||6.88A|
|Temperate Coefficient of Isc||(0.10+/- 0.01)%/ degree|
|Temperate Coefficient of Voc||– (0.38 +/-0.01)%/ degree|
|Temperate Coefficient of Power Voc||-0.47%/degree|
|Temperature Range||-40 degree~+80 degree|
|Frame||Heavy duty aluminum|
|SLA Battery Voltage||12V|
|Number of solar cells||36PCS|
|Battery Rated Voltage||DC12V/24V|
|Rated Turbine Power||400W/800W|
|Turbine Recovery voltage||13.2V/26.4V|
|Rated panel Power||500W/1000W|
|Largest Discharging Current||20A|
|Battery overcharging Protection||16.5V/33V(Turn off Load Output)|
|Battery Discharging Protection||10.7V/21.4V(Turn off Load Output)|
|Battery Discharge Recovery Protection||12V/25V(Recover Load Output)|
|Output Volt||220V AC|
|Waveform||Pure Sine Wave|
|AC Regulation||Low & High 10%|
|DC Voltage||LED Display Power & Fail Status|
|Low Battery Alarm||10.5+0.3V|
|Low Battery Shut Down||10+0.5V|
|Over Voltage Shut Down||15.5+0.5V|
|Over Load Shut Down||1200W over 10s|
|Over Heating Shut Down||>75℃|
|Over Thermal||Shut Down The Output|
|Working Temperature||Between -10℃ and +50℃|
The solar panel is widely be used
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mounts systems
5. Other industrial or commercial applications
1. All goods are in stock, the transaction will be handled within 1 business day.
2. Items will be sent out within 3 days after we received your payment.
3. Just shipping from our USA EU stock to American Cities and European by UPSor DHL, there are no taxes ans duties.
3. Please note us your contact details include your phone number for easy contacting from express guy.
Thank you for your kindly understand.
1. Cleaning Panels
Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.
2. Will hail hurt my solar panel?
All glass used in solar panels is toughened & factory tested to International standards. The small hail is no problem.
3. Do the solar panel systems make any noise?
No, they are not noise and you can use them in all national parks.
4. Will dirty glass on my solar panel reduce the power it creates?
Yes, please keep the glass area of your solar panel as clean as possible. All dirty marks or films on the glass surface will reduce the efficiency.
Keep it free from bird and bat dropping’s as they may permanently mark the glass surface. Clean with a moist soft cloth.
5. What can I run with a solar panel?
The mono solar panels will charge a battery while it’s in the sun. This type of unit is commonly used to run lights, TV’S, DVD
Customers should inspect the item(s) and notify us within 7 days if have any problems. If you have any problem with your item,
please contact us before leaving feedback. All items must be issued an RMA number before they returned.
The shipping cost of return goods is to be paid by the Buyer.
It’s have 12 months Warranty from the date of purchase covering manufacturing defects.
This warranty excludes any damage caused by the human.
1. Please check the package and item carefully to make sure there is no problem .
2. If you do not satisfied with the item or get damaged item, please contact with us firstly before leaving nagative feedback,
we will resolve the problem to satisfy you.
3. Online surpport: monday to friday 9:00 am to 5:30 pm (GMT+8). (excluded public holiday)
4. If you are satisfied with our product, kindly leave full-stars ( ) and good feedback for us.
Your feedback will encourage us do it better in the further. Thanks!
The company committed to provide customers with high quality products since 2004. As a manufacturer, we have more than 10 year
experiences in produce solar panels and renewable energy products. Also we have professional technical and customer team to
supply high quality products and better customer service.
Now the products have exported to Africa, Europe, America, some Middle East countries and some Asia countries.
We would like to be your best supplier in China.
