800W Kit Wind Turbine: 400W Wind Generator + 3*160W Solar Panel + 1000W Inverter

List price: US $1,151.99
Price: US $1,059.83
You save:US $92.16 (8%)
Ships From: China United States United Kingdom Germany Australia

Product Description

Package Includes:
1 pc Wind Turbine Generator
1 pc Hybrid Turbine Controller
3 pcs 160 Watts Mono Solar Panel
1 pc 1000 Watts 12-220V Off Grid Pure Sine Wave Inverter
2 pairs Y Branch MC4 Solar Panel Connector

1pc 24cm Wire

with

MC4 Connectors



(please cut it into 2pcs when connecting)

























  • 400W Wind Turbine Generator



Rated Power 400W
Rated Voltage DC27-54V
Battery Voltage DC12/24V
Start-up Wind Speed 2.5m/s(8’/s)
Rated Wind Speed 10.5m/S(35’/s)
Number of Blades 3
Material of Wind Leaf Carbon Fiber Composite
Rotor Diameter 1.2m(4′)
Rated Speed 800r/min[RPM]
Tower Diameter >80 mm(3.2")
Tower Height 4.5m-10m(15-33′)
Battery Capacity 200AH-400AH
Packing Dimension 687*365*210mm(27"x14.4"x8.3")
Product Life 15 years
Warranty 1 year
Certification CE



Since wind speed increases with height, increases to the tower height can mean enormous increases in the amount of electricity generated by the wind turbine.








  • 160W Mono Solar Panel

Specification:


Related power

160W

Maximum/Peak Voltage(Vmp)

17.9V

Open Circuit Voltage(Voc)

21.6V

Maximum/Peak Current(Imp)

8.94A

Short circuit current (Isc)

9.47A

Output Tolerance

±3%

Temperate coefficient of Isc

(010+/- 0.01) %/

Temperate coefficient of Voc

– (0.38 +/-0.01) %/

Temperate coefficient of power Voc

-0.47%

Temperature range

-40to +80

Frame

Heavy duty aluminum

Guarantee of power

90% within 10 years 80% within 25 years

Kind of glass and its thickness

Low Iron, high transparency tempered glass of 3.2mm(0.13”)

Size

1452x665x35mm(26.2"x57.3"x1.4")

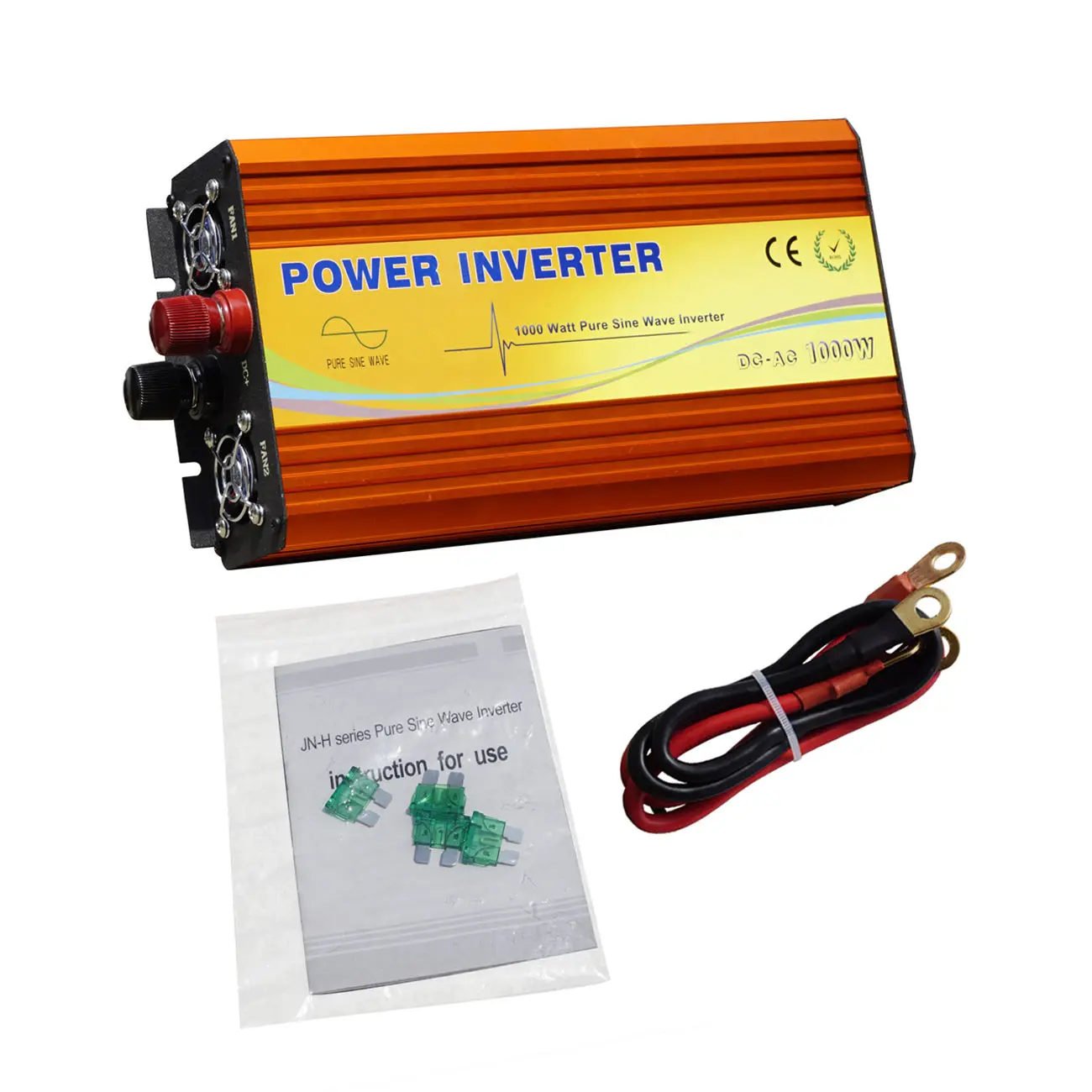

  • 1000W Pure Sine Wave Off Grid Inverter



OUTPUT OUTPUT VOLT 220V AC
CONTINUOUS POWER 1000W
SURGE POWER 2000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz
AC REGULATION LOW & HIGH 10%
Non-load Consumption <10W
EFFICEINCY >90%
INPUT USB OUTPUT 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC
PROTECTION WORKING INPUT 12VDC
FUSE 35A
Low battery alarm 10.5+0.3V
Low battery shut down 10+0.5V
Over voltage shut down 15.5+0.5V
Over load shut down 1200W OVER 10 SECOND
Over heating shut down >75
Over Thermal shut down the output
Working Temperature BETWEEN -10and +50
soft start
OTHER DIMENSION(L*W*H) 305*146*66mm


  • Y MC4 Solar Panel Connector

Function To Connect Each Solar Panel in Series or in Parallel
2 Pairs Included One Male/Male/Female(MMF) Branch Connector One Female/Female/Male(FFM) Branch Connector





Working Principle:





1. There is wind, the wind turbine blade in the rotation, the kinetic energy of the wind is converted into mechanical energy,

the spindle rotation to generate electricity.


2. The controller will produce an alternating current into direct current put in battery, achieve the goal for electric power.



3. When battery when completely filled, the controller is disconnected charging current controller to uninstall state formation,

to protect the battery will not overcharge.


4. Inverter main function is will have a low voltage dc wind generator, and battery storage of electrical energy is converted into ac 220 v / 50 hz alternating current (ac) to meet all kinds of household appliances use.



Performance Comparison:



System Configurations:



Wind and solar hybrid OFF GRID System for home
