600W Wind Turbine Generator & 900W Boost MPPT Wind Solar Hybrid Charge Controller(for 600W wind generator and 300W solar panel)

List price: US $409.00
Price: US $409.00
Voltage: 12V 24V

Product Description

==600W

Related Products


Product Features / Advantage
Wind Turbine Generator
ZL
1400mm



2m/s low wind speed starts the wind turbine generator.

This is the most obvious advange of this wind generator in all of same level product on the market which make high wind energy utilization rate.



Three phase AC output
Three phase output can make wind turbine transfer more wind power to electricity. 12V or 24V AC for customers’ choise for their system



Low fault and strong ability to resist the Typhoon

Fan adopts the unique design of the fuselage shock smooth operation, no noise, the blades with nylon composite materials manufacturing and become, with the optimization of aerodynamic design and structural design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity. Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.



Horizontal shaft function.

The wind turbine generator can adjust the angle automatically according to the wind directions by the horizontal shaft design.



20-year long service life.

Due to the  motor internal labyrinth design, external all fasteners are high strength stainless steel products, so it has better protection effect, can waterproof (IP65), prevent sand more effectively.



Easy Installation



 Tech Parameters

(If only need Wind Turbine Generator —-link , click the "Model No." to order)! ! ! !

Model No. Item  ZL1.2-300 ZL1.3-400 ZL1.4-500   ZL1.4-600
Power Rated 300W 400W 500W 600W
Max 450W 600W 720W 830W
Voltage Rated 12/24 AC
Braked 14.4/28.8 AC
Rotor diameter mm 1200mm 1300mm 1400mm 1400mm
Rated Rotate Speed  r/min 900r/min
Start-up wind speed m/s 2m/s
Cut-in wind speed m/s 2.6m/s
Rated wind speed m/s 12m/s
Cut-out wind speed m/s 50m/s
Yaw    fixed-wing type
Engine Type Single-phase Permanent Magnet DC Generator  (containing rare earth materials)
Structure Horizontal shaft
Equipment surface protection Aluminum oxide+plastic coating
Body Material Die casting aluminum,one die casting forming
Blade Number 3PCS/5PCS (Optional)
Blade material     High strength Carbon fiber with nylon
Pole diameter mm 48mm
Life span years 20years
Equipment surface protection Aluminum oxide+plastic coating
Working temperature  – 40°C to + 80°C
Package Weight G.W 9Kgs 9Kgs 10Kgs 11Kgs
Package dimension LxWxH 69X32X25CM 69X32X25CM 69X32X24CM 69X32X24CM

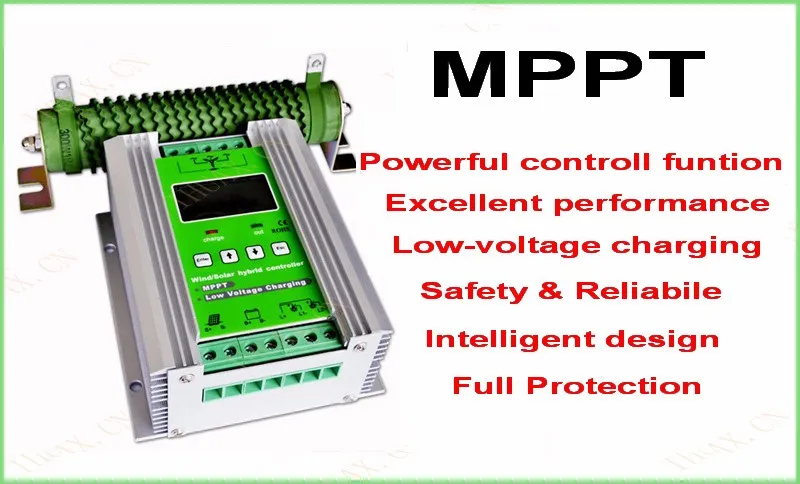

Boost MPPT Wind Solar Hybrid Charge Controller

sy

1.The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function).

Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine’s electricity can still be used;

In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately     launched the stepless unloading function,protection system of the equipment.

Solar charging using in series MOS tube  technology, which makes the controller power consumption is small, the system more stable.

2.Discharge part working mode can be set, light control mode, time control function etc, The user can be set up according to the requirements on its own combination.

3.Manmachine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.

4. The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

!!!   If you only need MPPT controller, please directly click your needed model to order  !!!


Model

HX600-30-S HX700-35-S HX900-40-S HX1000-50-S HX1100-60-S HX1200-70-S HX1400-80-S
Rated voltage 12V/24V Auto-work

PV Solar Panel Power

300W 300W 300W 400W 500W 600W 600W

Wind Turbine Power

300W 400W 600W 600W 600W 600W 800W
charging charging 30A 35A 40A 50A 60A 70A 80A
Even charge protection 14.4V±1%     /     28.8V±1%
floating Charge 13.8V±1%       /     27.6V±1%
Even charge recover 13.2V±1%     /      26.4V±1%
Temperature Compensation -24mV/ Degree—48mV/ Degree
Over Discharge Shut off (DC) 10.8V±1%     /     21.8V±1%
Resume (DC) 12.3V±1%     /     24.6V±1%
Over Voltage Shut off (DC) 16V±1%        /      32V±1%
Resume (DC) 15V±1%    /    30V±1%
No-load Current   ≤0.1A
Voltage drop (DC) ≤0.5V
Control mode Wind turbine MPPT charge function, PWM uninstall function, PWM over-current limiting
Boost charge Flexible independent step-up circuit (optional)
Display LCD
Show parameters voltage,charge current,battery volumetric
Protected type Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection, over speed and over-voltage soft automatic brake protection, overload protection.
Heat emanation way radiator
Working Temperature -25 ~+55
Height ≤5500m(2000m above the need to reduce power use)
Environment humidity 0~90%,No condensation
Warranty one year
Weight 1. Net Weight: 1.20KG       2. Gross Weight: 2.7 KGS/PC(controller+dump load)
Size(L*W*H)

1. 162×140×64(MM)           2. Packing Size: 26X22X20CM

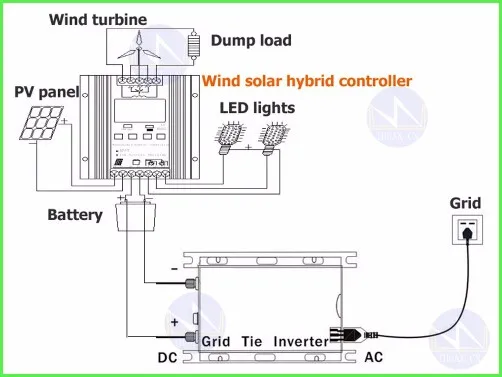

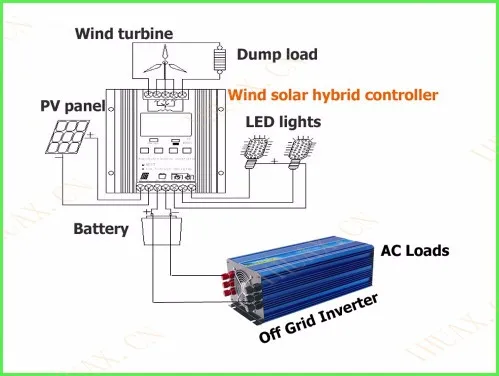

Connection Diagrames
1222
