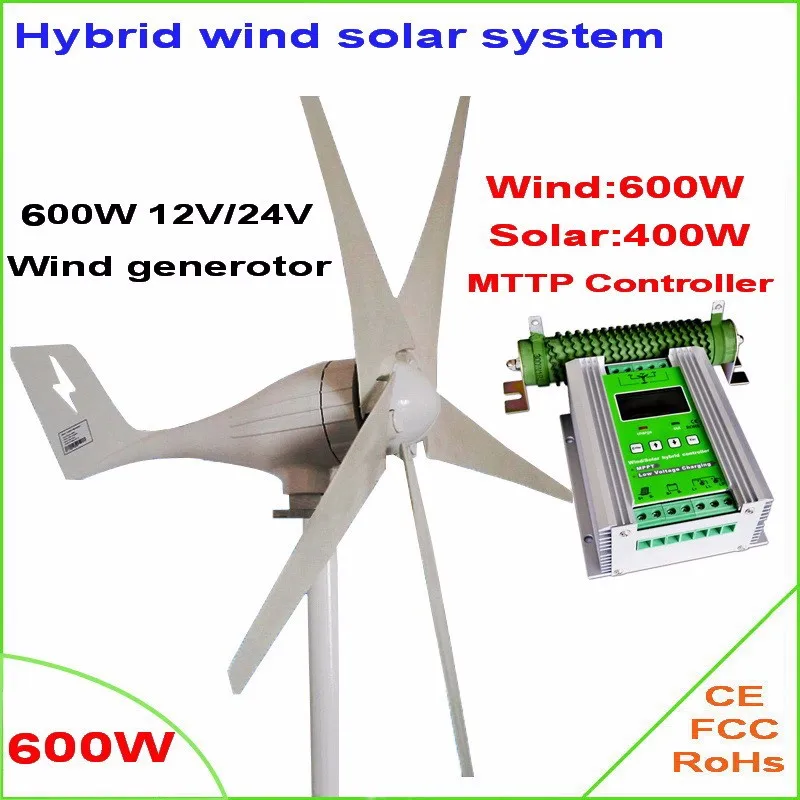

600W wind generator MAX 830W wind turbine+1000W MPPT hybrid charge controller for 600W wind turbine generator+400W solar panels

List price: US $472.00
Price: US $472.00
Voltage: 12V 24V

Product Description



==

Related Products



Product Features / Advantage
Wind Turbine Generator
Ac600+


1. 2m/s low wind speed starts the wind turbine generator.

This is the most obvious advange of this wind generator in all of same level product on the market which make high wind energy utilization rate.



2. Three phase AC output
Three phase output can make wind turbine transfer more wind power to electricity. 12V or 24V AC for customers’ choise for their system



3. Low fault and strong ability to resist the Typhoon

Fan adopts the unique design of the fuselage shock smooth operation, no noise, the blades with nylon composite materials manufacturing and become, with the optimization of aerodynamic design and structural design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity. Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.



4. Horizontal shaft function.

The wind turbine generator can adjust the angle automatically according to the wind directions by the horizontal shaft design.



5. 20-year long service life.

Due to the  motor internal labyrinth design, external all fasteners are high strength stainless steel products, so it has better protection effect, can waterproof (IP65), prevent sand more effectively.



6. Easy Installation





 8.Tech Parameters

!!! If you only Wind Turbine Generator —-link to order !!!

Rated power 600W
Maximum power 830W
Rated voltage 12/24V AC
Start-up wind speed 2.0m/s
Rated wind speed 12m/s
Survival wind speed 50m/s
Top net weight 10kg
Wheel diameter 1.4m
Number of blades 5
Blades material Germany Nano nylon glass fiber
Generator type  Three phase permanent magnet AC synchronous generator
Magnet material  NdFeB
Generator case Casting aluminum alloy
Control system Electromagnet/wind wheel yaw
Speed regulation Automatically adjust windward direction
Working temperature -50  to 60 degree
Design life 20 y
Packing Size 78x42x26cm




Boost MPPT Wind Solar Hybrid Controller
sy

1.The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function).

Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine’s electricity can still be used;

In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately     launched the stepless unloading function,protection system of the equipment.

Solar charging using in series MOS tube  technology, which makes the controller power consumption is small, the system more stable.

2.Discharge part working mode can be set, light control mode, time control function etc, The user can be set up according to the requirements on its own combination.

3.Manmachine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.

4. The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.


!!!   If you only need MPPT controller, please directly click your needed model to order  !!!


Model

HX600-30-S HX700-35-S HX900-40-S HX1000-50-S HX1100-60-S HX1200-70-S HX1400-80-S
Rated voltage 12V/24V Auto-work

PV Solar Panel Power

300W 300W 300W 400W 500W 600W 600W

Wind Turbine Power

300W 400W 600W 600W 600W 600W 800W
charging charging 30A 35A 40A 50A 60A 70A 80A
Even charge protection 14.4V±1%     /     28.8V±1%
floating Charge 13.8V±1%       /     27.6V±1%
Even charge recover 13.2V±1%     /      26.4V±1%
Temperature Compensation -24mV/ Degree—48mV/ Degree
Over Discharge Shut off (DC) 10.8V±1%     /     21.8V±1%
Resume (DC) 12.3V±1%     /     24.6V±1%
Over Voltage Shut off (DC) 16V±1%        /      32V±1%
Resume (DC) 15V±1%    /    30V±1%
No-load Current   ≤0.1A
Voltage drop (DC) ≤0.5V
Control mode Wind turbine MPPT charge function, PWM uninstall function, PWM over-current limiting
Boost charge Flexible independent step-up circuit (optional)
Display LCD
Show parameters voltage,charge current,battery volumetric
Protected type Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection, over speed and over-voltage soft automatic brake protection, overload protection.
Heat emanation way radiator
Working Temperature -25 ~+55
Height ≤5500m(2000m above the need to reduce power use)
Environment humidity 0~90%,No condensation
Warranty one year
Weight 1. Net Weight: 1.20KG       2. Gross Weight: 2.7 KGS/PC(controller+dump load)
Size(L*W*H)

1. 162×140×64(MM)           2. Packing Size: 26X22X20CM




Connection Diagrames
1 222
