5years warranty water solar system, panel solar, submersible pump solar, free shipping, Model No.:JS4-3.6-80

Price: US $855.00

Product Description

js3420130821_165835Solar water pump, solar borehole pump system, dc pump for deep well,  free shipping, 5years warranty Solar water pump, solar borehole pump system, dc pump for deep well,  free shipping, 5years warranty Solar water pump, solar borehole pump system, dc pump for deep well,  free shipping, 5years warranty
solar water pump, solar borehole pump system, dc pump for deep well, free shipping,5years warranty
The price includes:
1. pump with 3meter cable,
2. Pump controller,
3. spare parts:screw
4. Cable connector,
5. Water level sensor,
6. Cabel for solar panel: 6meter
If you need solar panels for the pump, pls inform us separately, we will add the price of solar panels thanks.

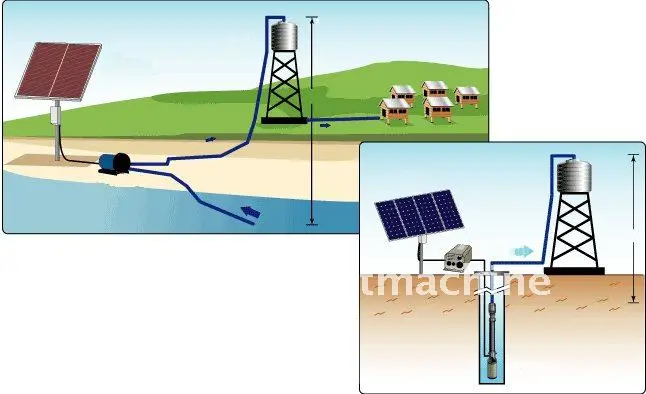

SOLAR PUMP’S APPLICATION AREA:
This project products are mainly used in dry region for irrigation of agricuture.
It can be used for drinking water and living water.
The living codition could be much improved.

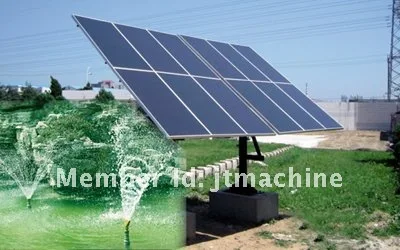

It also can be used for fountains.
MATERIAL OF PARTS:
Outlet:stainless steel
Pump body:stainless steel
Motor body:stainless steel
Screw:stainless steel
Bearing:NSK
ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.
2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation?300M?,
the motor security was much improved.
3.Structure innovation
Oil filling,convenient installation and environmental protection.
PERFORMANCE DATA:

TYPE VOLTAGE RATE POWER MAX FLOW MAX HEAD OUTLET SIZE DIAMETER OF
PUMP
(v) (w) (m3/h) m (in) (mm)
JS3-0.9-32 12 100 0.9 32 3/4" 76
JS3-1.3-50 24 120 1.3 50 3/4" 76
JS3-1.8-60 24 180 1.8 60 3/4" 76
JS3-1.8-80 24 210 1.8 80 3/4" 76
JS3-1.8-100 24 270 1.8 100 3/4" 76
JS3-2.1-100 48 450 2.1 100 3/4" 76
JS3-2.1-120 48 540 2.1 120 3/4" 76
JS3-2.3-140 72 1000 2.3 140 3/4" 76

JC3-2.8-14 24 140 2.8 14 1" 76
JC3-2.5-28 36 260 2.5 28 1" 76
JC3-3.6-33 36 320 3.6 33 1" 76
JC3-2.5-39 36 400 2.5 39 1" 76
JC3-4.2-38 36 440 4.2 38 1" 76
JC3-4.2-54 48 600 4.2 54 1" 76
JC3-2.8-62 48 600 2.8 62 1" 76
JC3-3.2-85 48 750 3.2 85 1" 76
JS4-3.0-60 36 450 3 60 1" 100
JS4-2.5-70 48 500 2.5 70 1" 100
JS4-3.6-80 48 750 3.6 80 1" 100
JS4-4.0-100 72 1000 4 100 1" 100
JS4-3.2-120 72 1000 3.2 120 1" 100
JS4-2.5-140 72 1000 2.5 140 1" 100
JC4-5.5-32 36 360 5.5 32 1.25" 100
JC4-5.8-43 36 500 5.8 43 1.25" 100
JC4-3.1-66 36 500 3.1 66 1.25" 100
JC4-4.0-60 48 720 4 60 1.25" 100
JC4-6.8-60 72 1000 6.8 60 1.25" 100
JC4-6.0-88 72 1000 6 88 1.25" 100
JC4-8.0-55 72 1000 8 55 1.5" 100
JC4-10.0-45 72 1000 10 45 2" 100
JC4-14.0-33 72 1000 14 33 2" 100
JS4
