120m lift 24v 36v DC submersible solar water pump, 0.5 hp 1 hp 2 hp deep well solar powered water pump with internal controller

List price: US $368.22
Price: US $368.22
Voltage: 24v DC

Product Description

Specification:

Max head: 120m
Max flow: 50L/min
Operating voltage range: 18v-45v
Power range: 270~1440w
Driven by: Solar panel/ dc power
Outlet: 32mm
Body dia: 89mm
Body length: 750mm
Original Wire length: 1m
Material: Stainless steel 304
Current: 14A~40A
Operation life: 20,000 hours
Warranty: 1 year

Recommended solar panel: 24 volt 1000w~2500w

Recommended batteries: 3 pcs 12 volt in seires

Recommended working lift: 0~100m

Recommended wire size: 4mm2(1~30m) / 10mm2(longer than 40m)

Don’t overload the pump for long time, it will damage the motor.











Features:

  • small size, suitable for 4" or bigger borehole wells.
  • smart protection, longer service life.

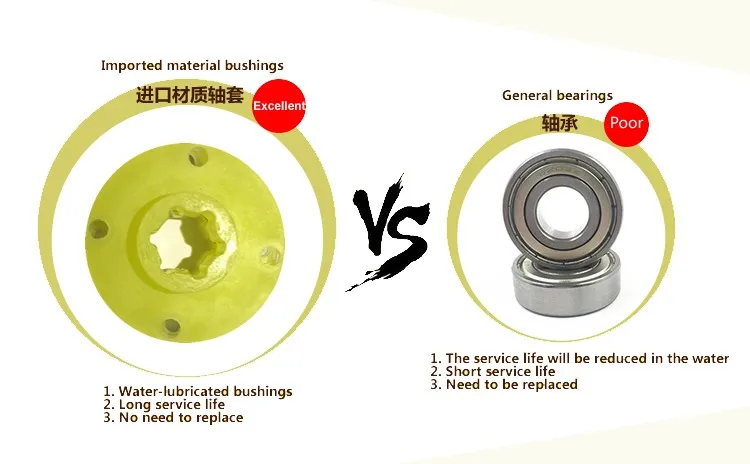

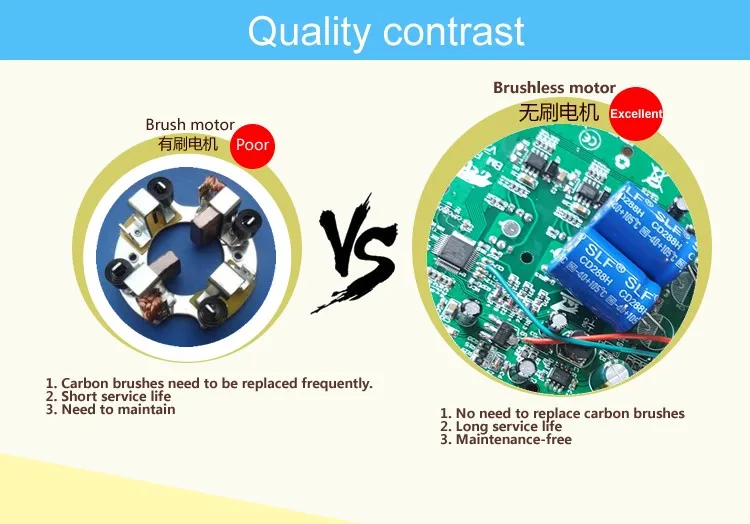

  • DC brushless motor, maintenance free.
  • Internal controller, plug & play
  • wide working voltage range(18-45v).
  • multi-usage, suitable for water tank, pond, swimming pool, irrigation, etc

All Kary submersible solar water pumps have internal controller which can make the pump connect to solar panel directly.

If the input voltages are generally out of the range 18v-45v, the pump will stop automatically,it will test the input voltage every 5 minutes and restart when the voltage is normal.

sysm
D485T-2     D485T-3
Click here to view more pumps
Kary solar water pump
Centrifugal pump
Model Power (w) Lift(m) Flow per hour (m3) Outlet    (mm) Well Dia Max input   voltage  Recommended   working voltage
M123T-10 132 15~8 1.5~3 25/32 3.2" or more 22v 8v-16v
M243T-10  192 15~8 1.5~3 25/32 3.2" or more 45v 18v-36v
M123T-20   264 23~15 1.5~3 25/32 3.2" or more 22v 8v-16v
M243T-20 384 25~15 1.5~3 25/32 3.2" or more 45v 18v-36v
M243T-30 576 36~20 1.5~3 25/32 3.2" or more 45v 18v-36v
M243T-40 768 45~30 1.5~3 25/32 3.2" or more 45v 18v-36v
M245T-10 216 15~8 3~5 25/32 4" or more 45v 18v-36v
M245T-20   432 23~15 3~5 25/32 4" or more 45v 18v-36v
M245T-30   648 36~20 3~5 25/32 4" or more 45v 18v-36v
D485T-15 489 15~10 3~5 25/32 4" or more 75v 40v-60v
Screw pump
S122T-30 240 30~20 1~2.5 25/32 3.2" or more 22v 8v-16v
S123T-30 260 30~20 1.5~3 25/32 3.2" or more 22v 8v-16v
S242T-30 260 30~20 1~2.5 25/32 2" or more 45v 18v-36v
S242T-40 284 45~30 1~2.5 25/32 3.2" or more 45v 18v-36v
S243T-40 350 45~30 1.5~3 25/32 3.2" or more 45v 18v-36v
S243T-50 432 60~40 1.5~3 25/32 3.2" or more 45v 18v-36v
S243T-80 576 100~70 1.5~3 25/32 3.2" or more 45v 18v-36v

Caution:

  • Do not mix the positive(+) and negative(-) connection.
  • Idle solar water pump and is strictly prohibited
  • The pump should be fully submerged.
  • 6mm2 or 10mm2 wire is required if the cable is longer than 30m.
  • The diameter of the pipe connected to the pump must bigger than 25mm. Don’t block or bend the pipe/ outlet/ intake

Damage caused by the above is not coverd by the warranty.

Certification:





Packing & shipping

                                    packing & shipping

Any questions please contact Michael.
