100W COMPLETE KIT:100W PV Solar Panel 12V system RV Boat solar cell panel*`#

List price: US $278.62
Price: US $195.03
You save:US $83.59 (30%)
Ships From: China United States United Kingdom Germany Australia

Product Description

100W COMPLETE KIT:100W PV Solar Panel 12V system RV Boat solar cell panel



Item Describe

This is 100w solar panel full kit. 100W solar panel complete kit.

3-5working days to USA mainland

100%shipping assurance against broken solar panel

100%power output



Package include:

1. 1pc 100W 18V poly solarpanel with MC4 connector

2. 1x 4 Z style mountingkit

3. 1 x 15A solar controller

4. 1 pair MC4 with 10meter 4mm⊃2;extension solar cable(red and black)

100W 18V poly solar panel, charge 12V battery.









Related power

100W

Voc

22.41V

Vop

17.9V

Short circuit current(Isc)

6.2A

Working current (Iop)

5.59A

Output Tolerance

±3%

Temperate coefficient of Isc

(0.10+/-0.01)%

Temperate coefficient of Voc

-(0.38 +/-0.01)% /

Temperate coefficient of power Voc

-0.47% /

Temperature range

-40  to +80

Frame

Heavy duty aluminum

Kind of connection

waterproof junction box, can be customized

Guarantee of power

90% with in 10 years 80% with in 25 years

Kind of glass and its thickness

Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage

12V

Size

665*1000*35mm

15A Solar Charge Controller Regulator with timer and light sensor



Max current: 15A
12V/24V auto detectable
Protect battery from the overcharge as well as overdischarge
Prevent the power store in battery go back to the solar panel during night time
Three Stage charging mode

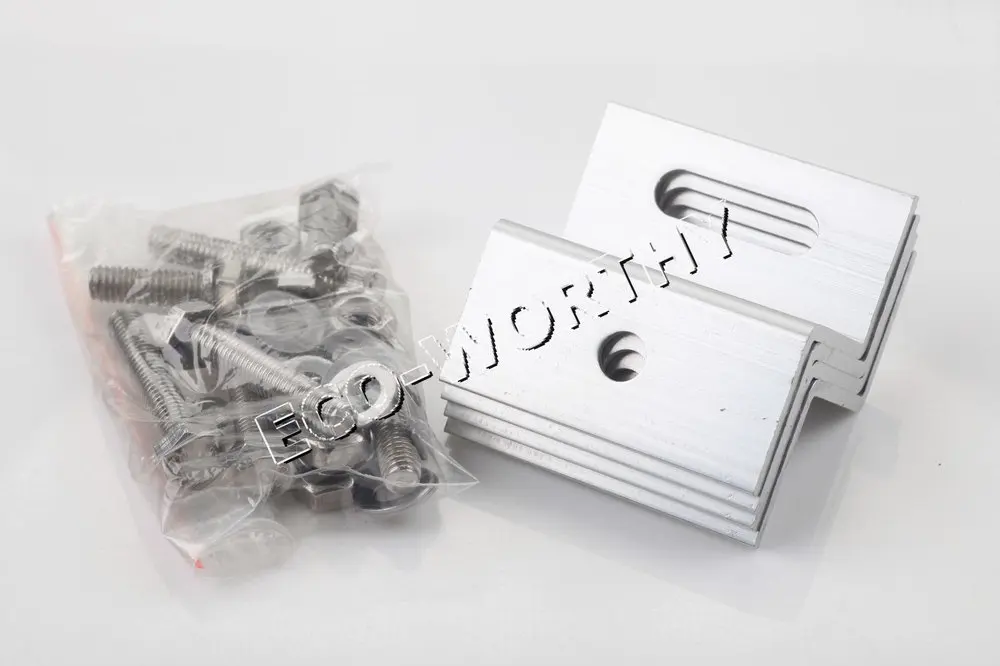

4 x SOLAR PANEL MOUNTING BRACKETS FITTING, EASY FIT KIT

There are FOUR to a set, Z style

Perfect for most framed solar panels,these brackets can be bolted to the rear of most framed solar panels allowing the solar panel to be easily attached to a flat surface. Ideal for caravans,campervans,motorhomes,boat…ect.



Include: 4 X solar panel brackets

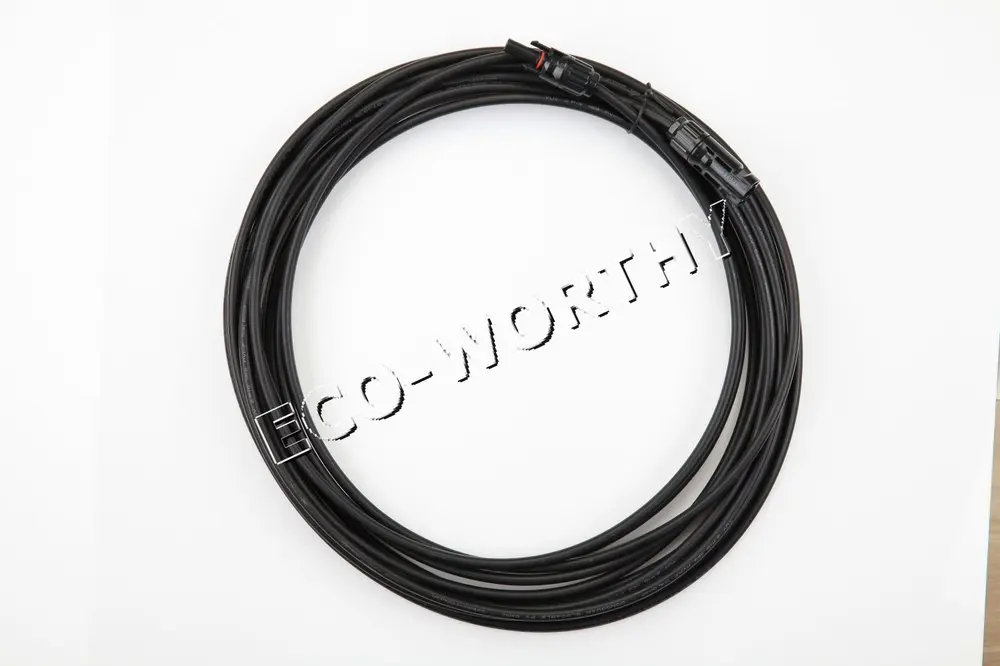

MC4 with 10 Meters extention cables TUV solar Pvcable UV and ozone resistant Red or Black 4mm⊃2;. 5 meters red cable and 5 meters black cable.



Solar cable
Product advantages
For moveable, suspended or fixed installation in photovoltaic systems at temperatures ranging from -40°c to +120°c For use indoors,outdoors,in explosive areas, and in industrial,commercial, and agricultural applications
Suitable for use inside and connected to insulated equipment(protection class II)
Max.ambient temperature up to +120°c (moveable and fixed)
Designed according to IEC 60216:constant temperature 120°c=20.000h(=2.3years),constant temperature max.90°c=30years
VDE-tested(VDE reg.no.8026)
TUV 2 PfG 1169/08.2007.cert.no.R60014271
Ammonia resistance
UV and ozone resistant
Pollution-and halogen-free
Improved fire-resistant performance
Protected against short circuits and ground leakages



Application
