Different dc voltage and ac voltage can be customized! Please leave me a messages of your specifications:
Leave me all these specifications by sending me a message, so that I can make sure of a fast shipping!
(attention please: only one voltage can be choose! If the input is 48v or 72v, the additional 10% price will be needed, if the input is 110v, the additional 15% price will be needed. If you need remote controller, we need more 15 USD.Please contact with me. I’ll change your price)
3.What’s your frequency? 50HZ or 60HZ?
4.What’s your socket type? please look at the picture I attached and make a choice.
About us:-Our company is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER and grid the inverter from 200W to 2000W. Our professional technical department, will support the best technical service and after-sale technical service.
-Our principle is “quality first, customer priority, service best, trade honest”.
-With the high quality, favorable fame, excellent service, our power inverters are sold all over the world. We have many loyal customer in the Europe, America, Asia, etc.
-All inverters are stricktly inspected before leaving factory, Reliable Company Guarantees that each inverter is in its best operating condition.
About the advantage:
-100% true sine wave output, Full power guaranteed.
-100% New Electric Components, Double-side PCB and imported Mexico FAIRCHILD MOSFET and Nippon ChemiCon Capacity.
-The wider case, the better for heat dissipation.
-Every component is distributed to rationality, greatly improving the reliability and service life of the inverter.
-All around protection greatly reduce the possibility of damage.
-Energy system: Solar energy source system, Wind energy source system, Car system, etc.
-Office Equipment: PC, Laptop, Printer,etc.
-Home Appliance: TV, Air conditioner, Oven, Cooker, DVD, GPS Fridge, Cleaner, Washer, Fan, Light, Refrigerator, etc.
-Industrial Equipment: Pump, Compressor, Motor, etc.
Product Detail Parameters
|DC Voltage||12V or 24V or 36V or 48V or 72V or 110V|
|Voltage Range||10-15VDC or 21-30VDC or 42-60VDC or 100-120VDC|
|NO Load Current Draw||<0.6A|
|DC Connector||Cables With Clips or Car Adaptor|
|AC Voltage||100/110/120VAC or 220/230/240VAC|
|Waveform||Pure Sine Wave|
|Frequency||50HZ or 60HZ|
|Low Voltage Alarm||10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V|
|Low Voltage Shut Down||9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V|
|Over Load||Shut Off Output|
|Over Voltage Shut Down||15.5V or 30.5V or 61.2V or 120V|
|Over Thermal||Shut Off Output Automatically|
|Working Temperature||Between -10centi and +50centi|
|Working Humidity||20%~90%RH non-condensing|
|Storage Temperature||Between -30centi and +70centi|

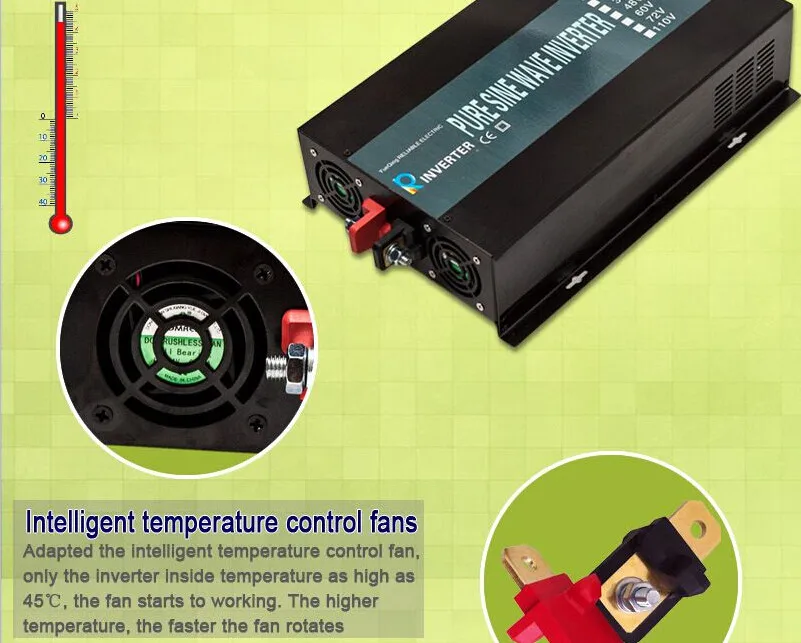

|Cooling Ways||Cooling Fan|
|Total Harmonic Distortion THD||<5%|
|Net Weight(kgs)||2.1 KG|
|Packing Type||Carton Packing|

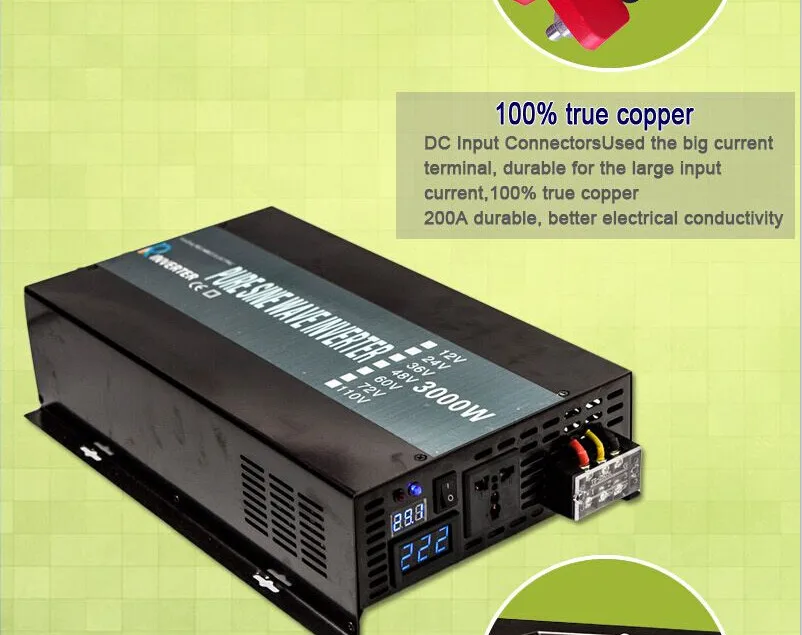

(The above photo is 3000W inverter, Only for your reference)

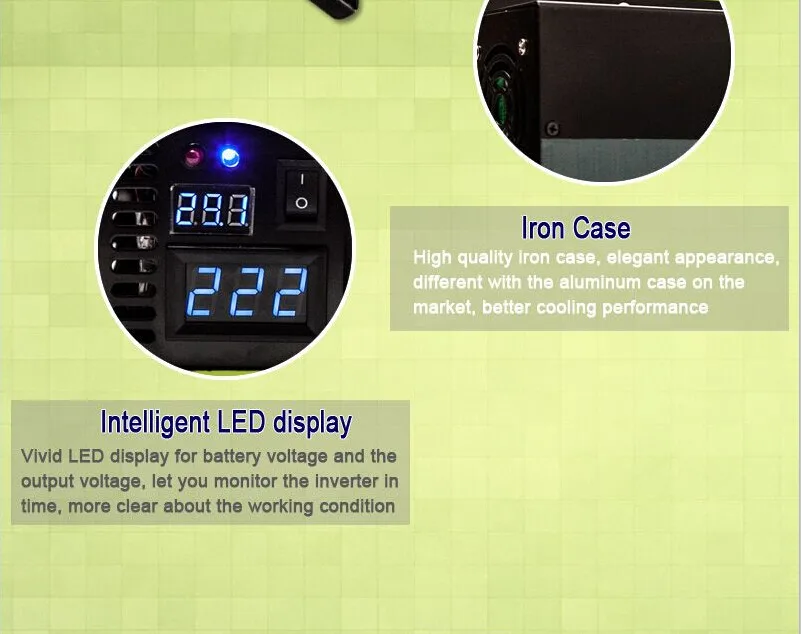

Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm. Inverter comes with an LED light to indicate the problem.
9 kinds of protections:
1.Short circuit production.
When the load is short circuit, the inverter will stop working.
2. High temperature production.
When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.
3. High voltage protections.
The battery voltage is above the rated voltage of the inverter, the inverter will stop working.
4. Low voltage protections
The battery voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.
5. Surge protection.
It can avoid the DC high voltage surging attack upon the electronic components inside.
6. Overload protection
When the appliances power is higher than the inverters power, the inverter will stop working for self protection.
7. Over current Protection
When the appliances current is bigger than the inverter current, the protection components on the board will be cut automatically for self protection.
When the appliances resistance is bigger than inverters, the fuses on the socket will be automatically cut off for self protection.
9. Reverse protection
It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.
The resistive load applications and the inductive load applications:
For resistive load applications:
If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance’s rated power.For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.
For inductive load applications:
If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.
Durable and safe quality with many years usage, our pure sine wave inverters are approved by EMC testing in Australia and CE certified. 18 months warranty.
For the small capacity, The inverter will be sent by DHL, EMS, Fedex and TNT, it will take 3-9 days for shipping.
If you have any question in the transport process, please contact with me in time.
–18 months warranty.
– Please leave me the message about the DC input, AC output, the frequency and the socket type before shipping, I will confirm for you. If the package is returned for customer’s fault, the customer need to pay for additional fee, if not, we will pay for additional fee and send the right one at once.
– Please attention if the package is broken before you received it, please don’t open the package and show me the photo, I will contact with the express at once.
– If you have any question when you use the inverter, please feel free contact with me, the professional technical department will help you to deal with the problem.
Q 1. what’s the payment term?
A. You can make a payment online, the TT, PayPal ,Western Uninon is also accepted.
Q 2. how’s the delivery time ?
A. Sample will be sent in 3 days, big order according to the quantity , 2 weeks at most.
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. We use 100% copper
Q 5.Could you offer Form A or C/O ?
A. Really no problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,absolutely no problem to do OEM.
Q 7.Could you accept the customized inverter ?
A. Yes, we accept the customizing inverter, such as print the logo in the shell, change the color of the shell.
Q 8.Where is your market?
A. We have been doing Europe, Russia , America ,Brazil ,Australia market for about 8 years , reliable quality make our business last long
Q 9.Does the inverter connect with solar/wind system ?
A.Yes. we have both off grid and on grid pure sine wave inverter
Q10. what kind of certificate you have ?
A. Our company already achieve CE , EMC certification .
