1.3KW kit 400W Wind Turbine Generator 6pcs 160W Mono Solar Panel 1500W Inverter

List price: US $2,471.14
Price: US $1,729.80
You save:US $741.34 (30%)
Ships From: China United States United Kingdom Germany Australia Indonesia

Product Description

Related Product





                       1.3KW Solar System kit

400W Wind Turbine Generator  6pcs 160W Mono Solar Panel 1500W Inverter



feature

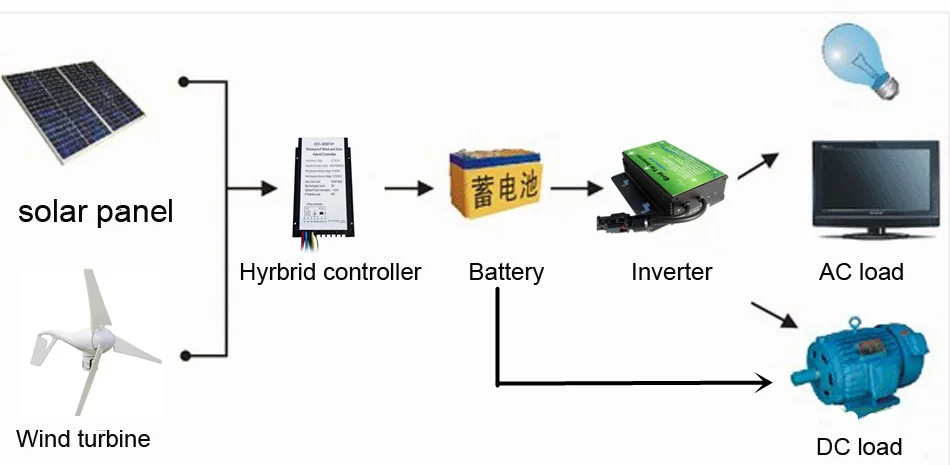

1. There is wind, the wind turbine blade in the rotation, the kinetic energy of the wind is converted into mechanical energy,

the spindle rotation to generate electricity.


2. The controller will produce an alternating current into direct current put in battery, achieve the goal for electric power.



3. When battery when completely filled, the controller is disconnected charging current controller to uninstall state formation,

to protect the battery will not overcharge.


4. Inverter main function is will have a low voltage dc wind generator, and battery storage of electrical energy is converted into ac 220 v / 50 hz alternating current (ac) to meet all kinds of household appliances use.



specification

400W Wind Turbine Generator


Rated Power 400W
Rated Voltage DC27-54V
Battery Voltage DC12/24V
Start-up Wind Speed 2.5m/s(8’/s)
Rated Wind Speed 10.5m/S(35’/s)
Number of Blades 3
Material of Wind Leaf Carbon Fiber Composite
Rotor Diameter 1.2m(4′)
Rated Speed 800r/min[RPM]
Tower Diameter >80 mm(3.2")
Tower Height 4.5m-10m(15-33′)
Battery Capacity 200AH-400AH
Packing Dimension 687*365*210mm(27"x14.4"x8.3")
Life Span 15 years
Warranty 1 year
Certification CE


160W Mono Solar Panel

Rated power 160W
Maximum/Peak Voltage(Vmp) 17.9V
Open Circuit Voltage(Voc) 21.6V
Maximum/Peak Current(Imp) 8.94A
Short circuit current (Isc) 9.47A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01) %/℃
Temperate coefficient of Voc – (0.38 +/-0.01) %/℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃to +80℃
Frame Heavy duty aluminum
Guarantee of power 90% within 10 years 80% within 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm(0.13")
Dimension 1452x665x35 mm(57.2"x26.2"x1.4")



1500W Off Grid Pure Sine Wave Inverter



Output

Output Volt

110VAC

Continuous Power

1500W

Surge Power

3000W

Waveform

Pure Sine Wave

Frequency

60Hz

AC Regulation

Low & High 10%

Non-load Consumption

<12W

Efficiency

>90%

Input

USB Output

5V

DC Voltage

Led Display Power & Fail Status

Input Range

21-30VDC

Protection

Working Input

24VDC

Fuse

20A

Low Battery Alarm

21+0.5V

Low Battery Alarm Shut Down

20+0.5V

Over Voltage Shut Down

30.5+0.5V

Over Load Shut Down

1800W over 10 Seconds

Over Heating Shut Down

>75

Over Thermal

Shut Down The Output

Working Temperature

Between -10℃ and +50

Soft Start

Other

Dimension(L*W*H)

390*180*50mm(15.4"x7.1"x2")



20A 12V/24V Hybrid Controller



Model FWS03/06-12/24
Battery Rated Voltage DC12V/24V
Rated Turbine Power 400W/800W
Brake Voltage 14.5V/29V
Turbine Recovery Voltage 13.2V/26.4V
Rated panel Power 500W/1000W
Largest Discharging Current 20A
Battery Overcharging Protection 16.5V/33V(Turn off Load Output)
Battery Discharging Protection 10.7V/21.4V(Turn off Load Output)
Battery Discharge Recovery Protection 12V/25V(Recover Load Output)
Static Power 15mA
Working Temperature -35~+75℃
Controller Dimension 150*87*28mm(5.9"x3.4"x1.1")
Inbreaking Protection IP67

Item display



M160wind turbine (3)wind turbine (1)



packing include



1 pc Wind Turbine Generator
1 pc Hybrid Turbine Controller
6 pcs 160 Watts Mono Solar Panel
1 pc 1500 Watts 24v-110V Off Grid Pure Sine Wave Inverter
4 pairs Y MC4 Branch Solar Panel Connector
1pc 24cm Wire with MC4 Connectors (please cut it into 2pcs when connecting)

s-l1600 (2)



FAQ

 1. Cleaning Panels

      Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.

  2. Will hail hurt my solar panel?

      All glass used in solar panels is toughened & factory tested to International standards. The small hail is no problem.

  3. Do the solar panel systems make any noise?

      No, they are not noise and you can use them in all national parks.

 4. Will dirty glass on my solar panel reduce the power it creates?

      Yes, please keep the glass area of your solar panel as clean as possible. All dirty marks or films on the glass surface will reduce the efficiency.

      Keep it free from bird and bat dropping’s as they may permanently mark the glass surface. Clean with a moist soft cloth.

  5. What can I run with a solar panel?

     The mono solar panels will charge a battery while it’s in the sun. This type of unit is commonly used to run lights, TV’S, DVD
